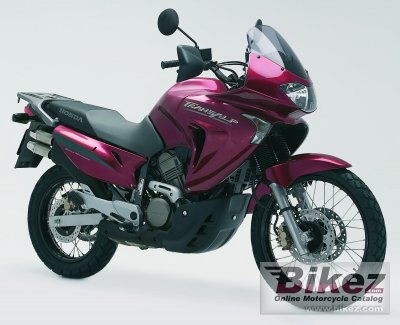

These are the known mechanical and performance specifications for your 2006 Honda XL 650 L Transalp.
Basic Specs
Engine
Displacement647.00 ccm (39.48 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke79.0 x 66.0 mm (3.1 x 2.6 inches)
Valves/Cylinder3
FuelingCarburettor. 34mm slant-type CV-type carburettor x 2
IgnitionDigital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid
Performance
Horespower52.29 HP (38.2 kW)
Torque55.00 Nm (5.6 kgf-m or 40.6 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions
Chassis
Frame Type
Rake
Trail108 mm (4.3 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height843 mm (33.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance192 mm (7.6 inches)
Wheelbase1,505 mm (59.3 inches)
Dry Weight191.0 kg (421.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
