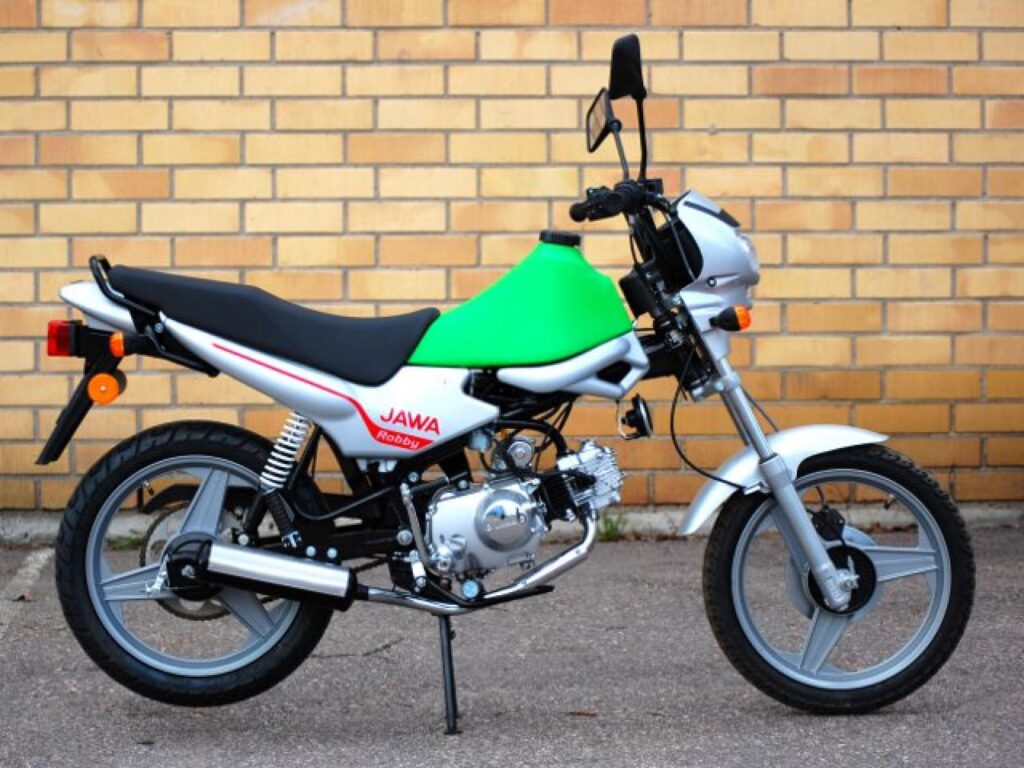

2006 Jawa-CZ 100 Robby Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Jawa-CZ 100 Robby.

Basic Specs

Year2006
MakeJawa-CZ
ModelJawa-CZ 100 Robby
TypeSport
Cost

Engine

Displacement97.00 ccm (5.92 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.8:1
Bore/Stroke50.0 x 49.5 mm (2.0 x 1.9 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox4-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower6.36 HP (4.6 kW)
Torque6.50 Nm (0.7 kgf-m or 4.8 ft.lbs)
Top Speed80.0 km/h (49.7 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity24.60 litres (6.50 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic forks 80mm
Front Travel
Rear SuspensionTeleskopic units 70mm
Rear Travel
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,200 mm (47.2 inches)
Dry Weight82.0 kg (180.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre2/16-..
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter124 mm (4.9 inches)
Wheels

Comments

It appears you're interested in specifications for the Jawa-CZ 100 Robby. This Sport model is powered by a Single cylinder, four-stroke engine with 97.00 ccm (5.92 cubic inches) of actual displacement before 8.8:1 compression. Fueling is metered via allowing this machine to produce its 6.36 HP (4.6 kW) horsepower and 6.50 Nm (0.7 kgf-m or 4.8 ft.lbs) torque. According to our records engine heat of the Jawa-CZ 100 Robby is moderated by Air. You'll need to get familiar with the 4-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 2/16-.. and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Jawa-CZ 100 Robby was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
