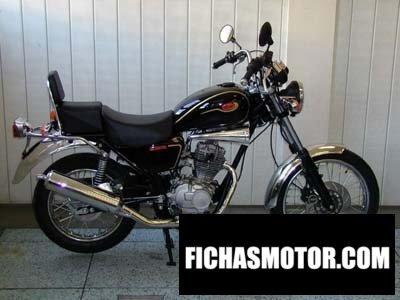

These are the known mechanical and performance specifications for your 2006 Jawa-CZ 125 Chopper.
Basic Specs
Engine
Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder
Fueling
Ignition
Exhaust
Lubrication
CoolingAir
Performance
Horespower12.60 HP (9.2 kW)
Torque9.20 Nm (0.9 kgf-m or 6.8 ft.lbs)
Top Speed95.0 km/h (59.0 mph)
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.50 litres (3.57 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic forks 150mm
Front Travel
Rear SuspensionTelescopic units 80mm
Rear Travel
Seat
Seat Height760 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,370 mm (53.9 inches)
Dry Weight125.0 kg (275.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre-.
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter265 mm (10.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter160 mm (6.3 inches)
Wheels
Comments
