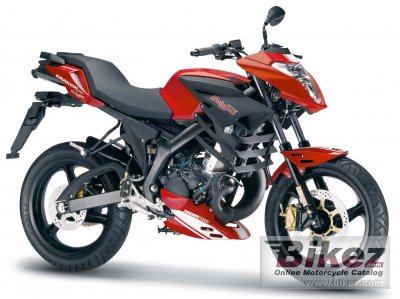

2006 Malaguti Drakon NKD 50 Ducati Corse Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Malaguti Drakon NKD 50 Ducati Corse.

Basic Specs

Year2006
MakeMalaguti
ModelMalaguti Drakon NKD 50 Ducati Corse
Cost Euro 3800. Prices depend on country, taxes, accessories, etc.

Engine

Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM12000
Compression10.0:1
Bore/Stroke
Valves/Cylinder1
FuelingCarburettor. Dell´Ortho PHBN 16mm
Ignitionelectronic
ExhaustUnderseat
LubricationSeparate
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multiplate
Driveline

Performance

Horespower9.00 HP (6.6 kW)
Torque
Top Speed100.0 km/h (62.1 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.30 litres (2.72 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionInverted forks
Front Travel100 mm (3.9 inches)
Rear Suspensionmonoshock
Rear Travel188 mm (7.4 inches)
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight112.0 kg (246.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/80-17´
Rear Tire/Tyre130/70-17´
Front BrakesSingle disc. 2 piston calipers
Front Brake Diameter280 mm (11.0 inches)
Rear BrakesSingle disc. 2 piston calipers
Rear Brake Diameter218 mm (8.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Malaguti Drakon NKD 50 Ducati Corse. This Naked bike model is powered by a Single cylinder, two-stroke engine with 49.00 ccm (2.99 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Carburettor. Dell´Ortho PHBN 16mm allowing this machine to produce its 9.00 HP (6.6 kW) horsepower and torque. According to our records engine heat of the Malaguti Drakon NKD 50 Ducati Corse is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 100/80-17´ and the rear is 130/70-17´ . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 2 piston calipers front brakes and Single disc. 2 piston calipers rear brakes. The Malaguti Drakon NKD 50 Ducati Corse was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

This bike has been constricted to go 45 km/h in europe, but when you deconstrict it, it does 90-100 km/h
