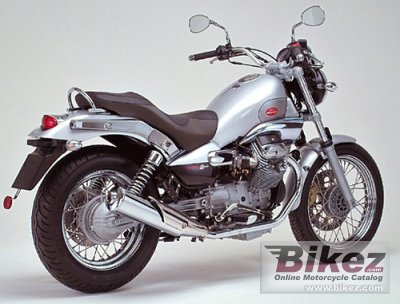

2006 Moto Guzzi Nevada Classic 750 IE Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Moto Guzzi Nevada Classic 750 IE.

Basic Specs

Year2006
MakeMoto Guzzi
ModelMoto Guzzi Nevada Classic 750 IE
CostUS$ 8990. Prices depend on country, taxes, accessories, etc.

Engine

Displacement744.00 ccm (45.40 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke80.0 x 74.0 mm (3.1 x 2.9 inches)
Valves/Cylinder2
FuelingInjection. Weber- Marelli electronic injection
IgnitionMagneti Marelli electronic digital Digiplex 25
ExhaustSteel with 2 polished steel mufflers
LubricationWet sump, forced oil, cartridge filter
CoolingAir

Drivetrain

Gearbox
Final Drive
ClutchSingle disc, dry with cush drive
Driveline

Performance

Horespower46.00 HP (33.6 kW)
Torque56.95 Nm (5.8 kgf-m or 42.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.00 litres (3.70 gallons)
Emissions

Chassis

Frame TypeDetachable tubular duplex cradle
Rake28.0°
Trail135 mm (5.3 inches)
Front SuspensionMarzocchi 40 mm hydraulic
Front Travel137 mm (5.4 inches)
Rear SuspensionSwing arm in light cast alloy with two dampers, spring adjustable for pre-load and rebound
Rear Travel74 mm (2.9 inches)
Seat
Seat Height762 mm (30.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,181 mm (46.5 inches)
Total Length2,210 mm (87.0 inches)
Total Width874 mm (34.4 inches)
Ground Clearance191 mm (7.5 inches)
Wheelbase1,482 mm (58.4 inches)
Dry Weight176.0 kg (388.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/90-18
Rear Tire/Tyre130/90-16
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter260 mm (10.2 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi Nevada Classic 750 IE. This Custom / cruiser model is powered by a V2, four-stroke engine with 744.00 ccm (45.40 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Injection. Weber- Marelli electronic injection allowing this machine to produce its 46.00 HP (33.6 kW) horsepower and 56.95 Nm (5.8 kgf-m or 42.0 ft.lbs) torque. According to our records engine heat of the Moto Guzzi Nevada Classic 750 IE is moderated by Air. You'll need to get familiar with the transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 110/90-18 and the rear is 130/90-16 . The entire package is supported by the frame, Detachable tubular duplex cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Moto Guzzi Nevada Classic 750 IE was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
