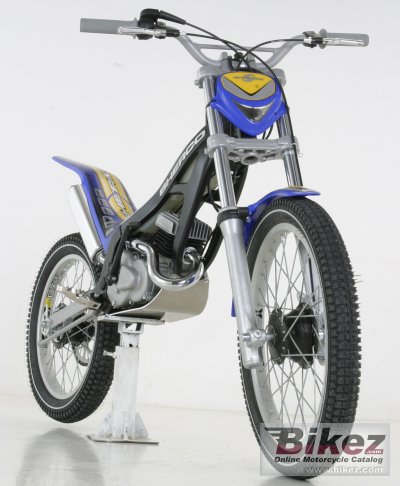

These are the known mechanical and performance specifications for your 2006 Sherco 0.5.
Basic Specs
Engine
Displacement49.30 ccm (3.01 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke40.0 x 39.3 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. Dellorto SHA 14 - 14L
IgnitionProgressive electronic ignition and balanced magnetic flywheel
ExhaustSteel pipe with aluminium muffler
LubricationUnleaded gasoline and 2 % oil pre-mix. Nikasil coated cylinder treatment
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity2.30 litres (0.61 gallons)
Emissions
Chassis
Frame TypeDeltabox type made in Chrome-molybdenum. Chromed finish
Rake
Trail
Front SuspensionHydraulic telescopic fork. Travel: 110 mm
Front Travel
Rear SuspensionOllé monoshock
Rear Travel
Seat
Seat Height510 mm (20.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance275 mm (10.8 inches)
Wheelbase1,020 mm (40.2 inches)
Dry Weight34.0 kg (75.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Intended for kids. Polini engine.
