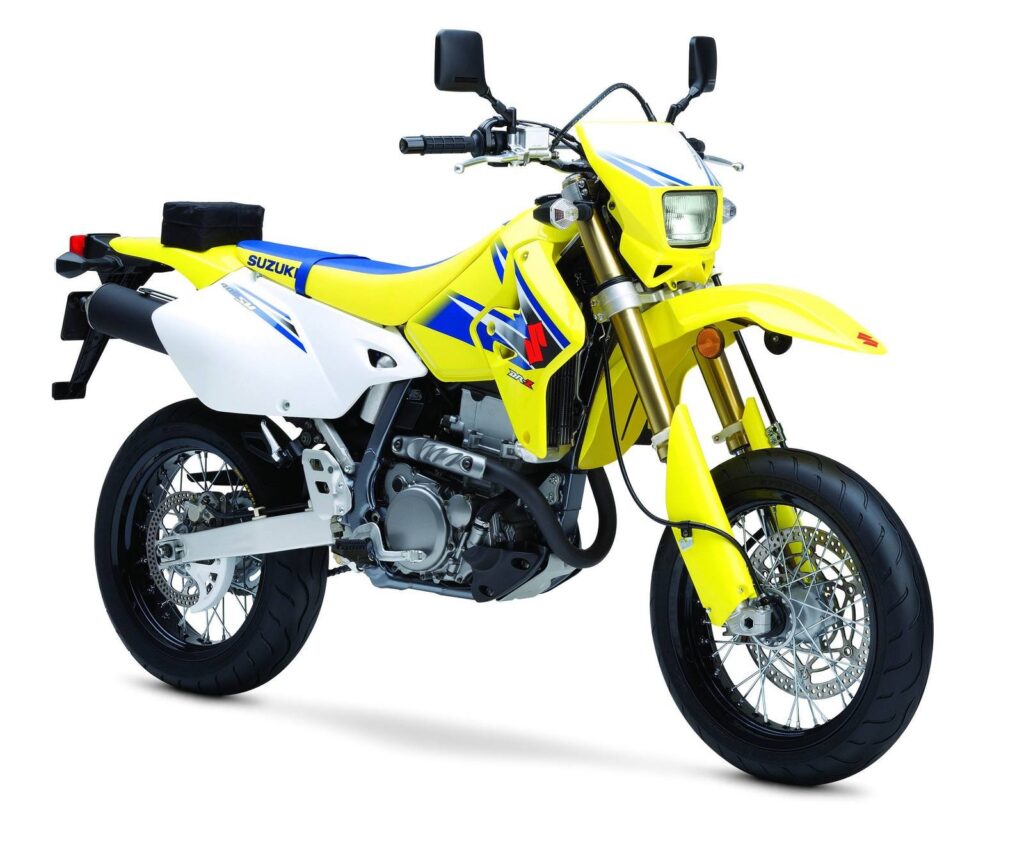

These are the known mechanical and performance specifications for your 2006 Suzuki DR-Z 400 SM.
Basic Specs
Year2006
MakeSuzuki
ModelSuzuki DR-Z 400 SM
TypeSuper motard
CostUS$ 6199. Prices depend on country, taxes, accessories, etc.
Engine
Displacement398.00 ccm (24.29 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke90.0 x 62.6 mm (3.5 x 2.5 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni
IgnitionDigital/DC-CDI
Exhaust
LubricationDry sump
Cooling
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionInverted telescopic, oil-damped, adjustable compression and rebound damping
Front Travel
Rear SuspensionLink-type, fully-adjustable spring preload, adjustable compression and rebound damping
Rear Travel
Seat
Seat Height890 mm (35.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,185 mm (46.7 inches)
Total Length2,220 mm (87.4 inches)
Total Width870 mm (34.3 inches)
Ground Clearance300 mm (11.8 inches)
Wheelbase1,460 mm (57.5 inches)
Dry Weight134.0 kg (295.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre140/70-17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
