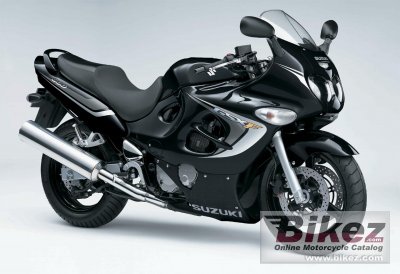

These are the known mechanical and performance specifications for your 2006 Suzuki Katana 600.
Basic Specs
Year2006
MakeSuzuki
ModelSuzuki Katana 600
TypeSport
CostUS$ 6399. Prices depend on country, taxes, accessories, etc.
Engine
Displacement600.00 ccm (36.61 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke62.6 x 48.7 mm (2.5 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni BSR32
IgnitionDigital/Transistorized
Exhaust
LubricationWet sump
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet multiple plate coil springs
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic, oil damped, 4-way adjustable rebound damping
Front Travel
Rear SuspensionLink-type suspension, 4-way adjustable rebound damping, 7-way adjustable preload
Rear Travel
Seat
Seat Height785 mm (30.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,195 mm (47.0 inches)
Total Length2,140 mm (84.3 inches)
Total Width755 mm (29.7 inches)
Ground Clearance120 mm (4.7 inches)
Wheelbase1,470 mm (57.9 inches)
Dry Weight208.0 kg (458.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre150/70-ZR17
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
