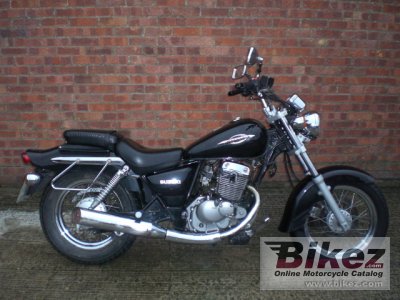

2006 Suzuki Marauder 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Suzuki Marauder 125.

Basic Specs

Year2006
MakeSuzuki
ModelSuzuki Marauder 125
Cost

Engine

Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke57.0 x 48.8 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni BS26 SS
IgnitionElectronic
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet multi plate
Driveline

Performance

Horespower11.53 HP (8.4 kW)
Torque9.60 Nm (1.0 kgf-m or 7.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity13.00 litres (3.43 gallons)
Emissions

Chassis

Frame Type
Rake32.5°
Trail
Front SuspensionTelescopic
Front Travel
Rear SuspensionTwin shock absorber, adjustable spring preload
Rear Travel
Seat
Seat Height680 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height805 mm (31.7 inches) If adjustable, highest setting.
Total Height1,090 mm (42.9 inches)
Total Length2,160 mm (85.0 inches)
Total Width815 mm (32.1 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1,450 mm (57.1 inches)
Dry Weight241.0 kg (531.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter275 mm (10.8 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Suzuki Marauder 125. This Custom / cruiser model is powered by a Single cylinder, four-stroke engine with 125.00 ccm (7.63 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. Mikuni BS26 SS allowing this machine to produce its 11.53 HP (8.4 kW) horsepower and 9.60 Nm (1.0 kgf-m or 7.1 ft.lbs) torque. According to our records engine heat of the Suzuki Marauder 125 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Suzuki Marauder 125 was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
