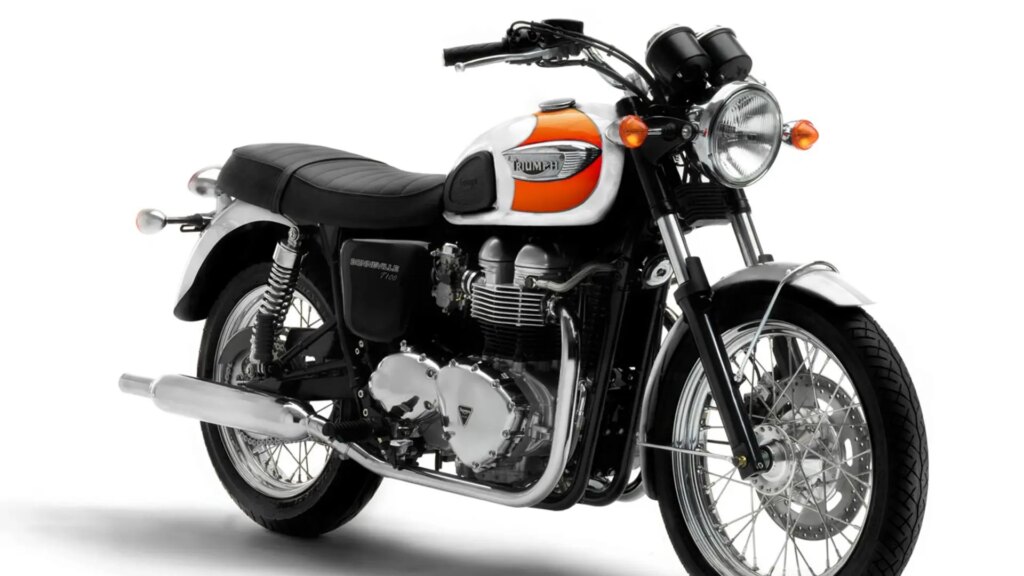

2006 Triumph Bonneville T100 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Triumph Bonneville T100.

Basic Specs

Year2006
MakeTriumph
ModelTriumph Bonneville T100
CostUS$ 8199. Prices depend on country, taxes, accessories, etc.

Engine

Displacement865.00 ccm (52.78 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke90.0 x 68.0 mm (3.5 x 2.7 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionDigital - inductive type
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet. multi-plate
Driveline

Performance

Horespower67.00 HP (48.9 kW)
Torque70.50 Nm (7.2 kgf-m or 52.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.60 litres (4.39 gallons)
Emissions

Chassis

Frame TypeTubular steel cradle
Rake28.0°
Trail
Front Suspension41mm forks
Front Travel
Rear SuspensionChromed spring twin shocks with adjustable preloads
Rear Travel
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,100 mm (43.3 inches)
Total Length2,230 mm (87.8 inches)
Total Width840 mm (33.1 inches)
Ground Clearance
Wheelbase1,500 mm (59.1 inches)
Dry Weight205.0 kg (451.9 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-19
Rear Tire/Tyre130/80-17
Front BrakesSingle disc
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter255 mm (10.0 inches)
Wheels

Comments

It appears you're interested in specifications for the Triumph Bonneville T100. This Classic model is powered by a Twin, four-stroke engine with 865.00 ccm (52.78 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 67.00 HP (48.9 kW) horsepower and 70.50 Nm (7.2 kgf-m or 52.0 ft.lbs) torque. According to our records engine heat of the Triumph Bonneville T100 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 100/90-19 and the rear is 130/80-17 . The entire package is supported by the frame, Tubular steel cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Triumph Bonneville T100 was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
