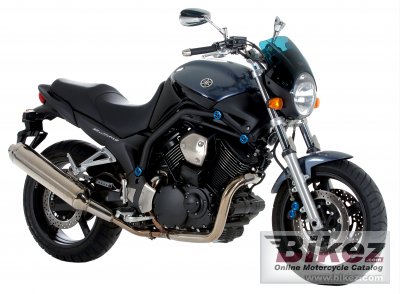

2006 Yamaha BT 1100 Bulldog Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Yamaha BT 1100 Bulldog.

Basic Specs

Year2006
MakeYamaha
ModelYamaha BT 1100 Bulldog
Cost

Engine

Displacement1063.00 ccm (64.86 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.3:1
Bore/Stroke95.0 x 75.0 mm (3.7 x 3.0 inches)
Valves/Cylinder
FuelingInjection
IgnitionTCI
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
ClutchWet, multiple-disc
Driveline

Performance

Horespower64.10 HP (46.8 kW)
Torque88.30 Nm (9.0 kgf-m or 65.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic fork
Front Travel130 mm (5.1 inches)
Rear SuspensionSwing arm (link suspension)
Rear Travel125 mm (4.9 inches)
Seat
Seat Height812 mm (32.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,140 mm (44.9 inches)
Total Length2,200 mm (86.6 inches)
Total Width800 mm (31.5 inches)
Ground Clearance168 mm (6.6 inches)
Wheelbase1,530 mm (60.2 inches)
Dry Weight233.0 kg (513.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre170/60-ZR17
Front BrakesDouble disc
Front Brake Diameter298 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter267 mm (10.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Yamaha BT 1100 Bulldog. This Naked bike model is powered by a V2, four-stroke engine with 1063.00 ccm (64.86 cubic inches) of actual displacement before 8.3:1 compression. Fueling is metered via Injection allowing this machine to produce its 64.10 HP (46.8 kW) horsepower and 88.30 Nm (9.0 kgf-m or 65.1 ft.lbs) torque. According to our records engine heat of the Yamaha BT 1100 Bulldog is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 170/60-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Yamaha BT 1100 Bulldog was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
