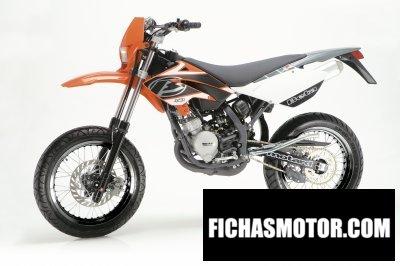

These are the known mechanical and performance specifications for your 2007 Beta RR 50 Motard.
Basic Specs
Engine
Displacement49.70 ccm (3.03 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression12.0:1
Bore/Stroke40.3 x 39.0 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto PHBN 16 FS
IgnitionElectronic AET 12V - 85W
Exhaust
LubricationMixing with mechanical pump, fuel 1,5% (with synthetic oil)
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet multi-disc clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity6.00 litres (1.59 gallons)
Emissions
Chassis
Frame Typesteel double cradle frame
Rake
Trail
Front SuspensionHydraulic fork with ø36 mm shaft
Front Travel36 mm (1.4 inches)
Rear SuspensionMonoshock with adjustable spring preload
Rear Travel
Seat
Seat Height910 mm (35.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,120 mm (44.1 inches)
Total Length1,960 mm (77.2 inches)
Total Width800 mm (31.5 inches)
Ground Clearance355 mm (14.0 inches)
Wheelbase1,325 mm (52.2 inches)
Dry Weight85.0 kg (187.4 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
