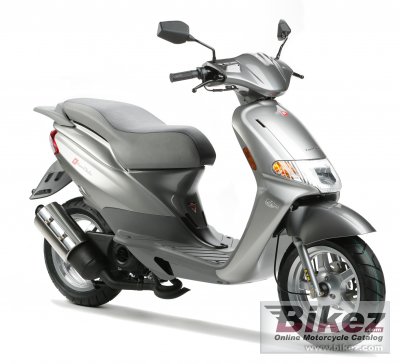

These are the known mechanical and performance specifications for your 2007 Derbi Atlantis Two Chic 2t.
Basic Specs
Engine
Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression11.5:1
Bore/Stroke41.0 x 37.4 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.20 litres (1.90 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionBracket by telescope
Front Travel
Rear SuspensionHydraulic Monoamortiguador
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length1,810 mm (71.3 inches)
Total Width710 mm (28.0 inches)
Ground Clearance
Wheelbase1,265 mm (49.8 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-12
Rear Tire/Tyre120/70-12
Front BrakesSingle disc
Front Brake Diameter190 mm (7.5 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter120 mm (4.7 inches)
Wheels
