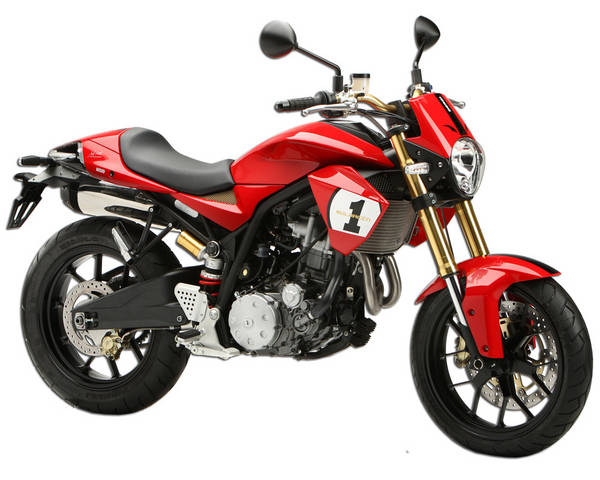

These are the known mechanical and performance specifications for your 2007 Derbi Mulhacén Hot Bob.
Basic Specs
Engine
Displacement659.70 ccm (40.25 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke100.0 x 84.0 mm (3.9 x 3.3 inches)
Valves/Cylinder
FuelingInjection. Electronic fuel ignition NIPPODENSO with secondary air system, throttle valve 44mm
IgnitionElectronic
Exhaust
LubricationDry sump
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.00 litres (3.43 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension43 mm. Upside-down fork
Front Travel120 mm (4.7 inches)
Rear SuspensionMonoshock with progressive link system
Rear Travel120 mm (4.7 inches)
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,150 mm (45.3 inches)
Total Length2,120 mm (83.5 inches)
Total Width
Ground Clearance
Wheelbase1,386 mm (54.6 inches)
Dry Weight165.0 kg (363.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/80-18
Rear Tire/Tyre150/70-18
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter245 mm (9.6 inches)
Wheels
