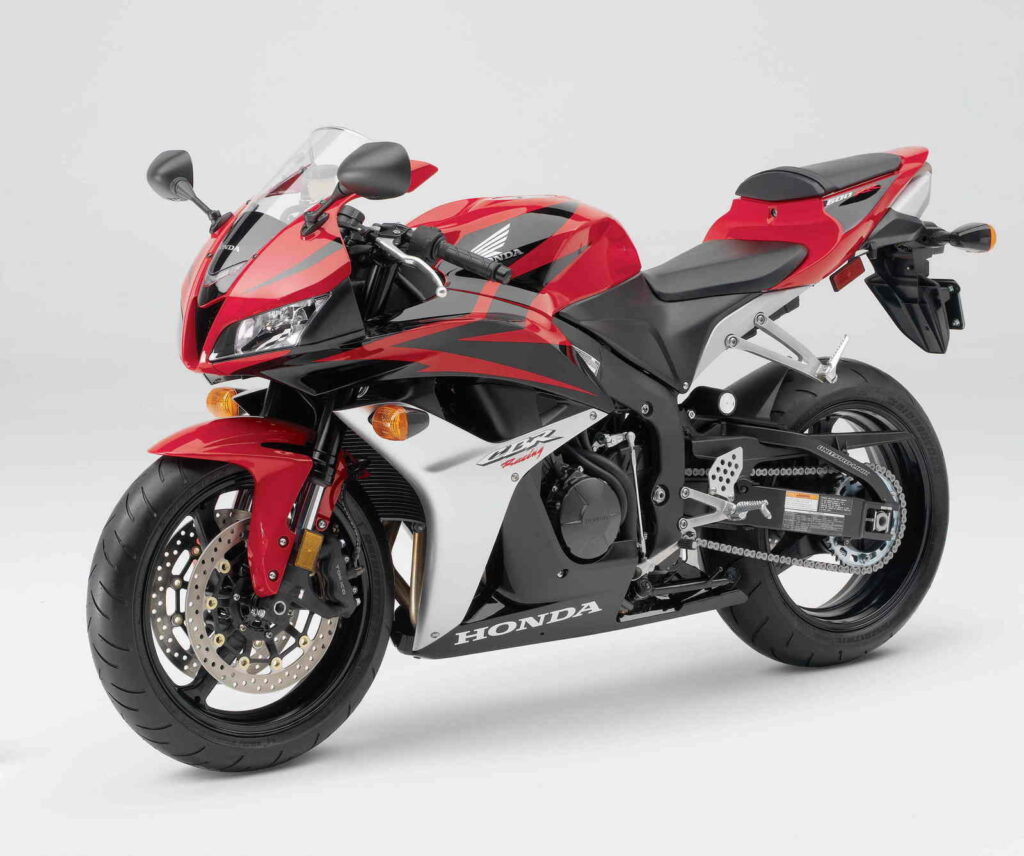

2007 Honda CBR 600 RR Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Honda CBR 600 RR.

Basic Specs

Year2007
MakeHonda
ModelHonda CBR 600 RR
TypeSport
CostUS$ 9499. Prices depend on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement599.00 ccm (36.55 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression12.2:1
Bore/Stroke67.0 x 42.5 mm (2.6 x 1.7 inches)
Valves/Cylinder4
FuelingInjection. Dual Stage Fuel Injection (DSFI)
IgnitionComputer-controlled digital transistorized with three-dimensional mapping
Exhaust
Lubrication
CoolingLiquid
Spark Plugs

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline
Chain Clutch Plates

Performance

Horespower
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.16 litres (4.80 gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame Type
Rake23.7°
Trail96 mm (3.8 inches)
Front Suspension41mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability
Front Travel119 mm (4.7 inches)
Rear SuspensionUnit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability
Rear Travel130 mm (5.1 inches)
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight156.5 kg (345.0 pounds)
Wet Weight
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Honda CBR 600 RR. This Sport model is powered by a In-line four, four-stroke engine with 599.00 ccm (36.55 cubic inches) of actual displacement before 12.2:1 compression. Fueling is metered via Injection. Dual Stage Fuel Injection (DSFI) allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda CBR 600 RR is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda CBR 600 RR was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: CBR600RR
