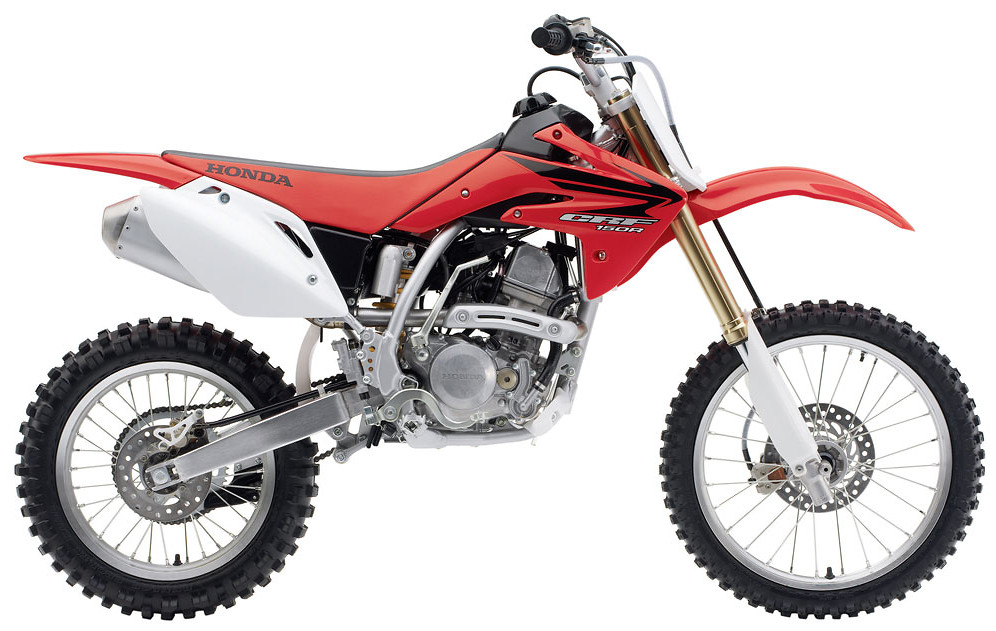

These are the known mechanical and performance specifications for your 2007 Honda CRF 150 R Expert.
Basic Specs
Engine
Displacement149.00 ccm (9.09 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke66.0 x 43.7 mm (2.6 x 1.7 inches)
Valves/Cylinder
FuelingCarburettor. Keihin 32mm flat slide with throttle position sensor (TPS)
Ignition
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity4.31 litres (1.14 gallons)
Emissions
Chassis
Frame Type
Rake27.0°
Trail96 mm (3.8 inches)
Front Suspension37 mm fully adjustable leading-axle inverted Showa cartridge fork
Front Travel274 mm (10.8 inches)
Rear SuspensionPro-Link fully adjustable Showa single shock
Rear Travel292 mm (11.5 inches)
Seat
Seat Height866 mm (34.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance335 mm (13.2 inches)
Wheelbase1,285 mm (50.6 inches)
Dry Weight77.0 kg (169.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/100-19
Rear Tire/Tyre90/90-16
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter190 mm (7.5 inches)
Wheels
Comments
Model ID: CRF150RB
