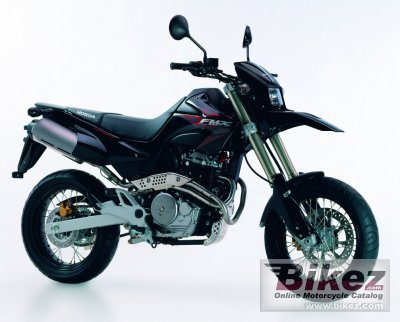

2007 Honda FMX 650 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Honda FMX 650.

Basic Specs

Year2007
MakeHonda
ModelHonda FMX 650
Cost

Engine

Displacement644.00 ccm (39.30 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression8.3:1
Bore/Stroke100.0 x 82.0 mm (3.9 x 3.2 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionFully transistorised electronic
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower37.00 HP (27.0 kW)
Torque52.30 Nm (5.3 kgf-m or 38.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity11.00 litres (2.91 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension45mm inverted leading-axle telescopic fork,218mm axle travel
Front Travel
Rear SuspensionPro-Link, 186mm axle travel
Rear Travel
Seat
Seat Height875 mm (34.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,151 mm (84.7 inches)
Total Width
Ground Clearance216 mm (8.5 inches)
Wheelbase1,490 mm (58.7 inches)
Dry Weight163.0 kg (359.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesDouble disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda FMX 650. This Allround model is powered by a Single cylinder, four-stroke engine with 644.00 ccm (39.30 cubic inches) of actual displacement before 8.3:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 37.00 HP (27.0 kW) horsepower and 52.30 Nm (5.3 kgf-m or 38.6 ft.lbs) torque. According to our records engine heat of the Honda FMX 650 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda FMX 650 was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
