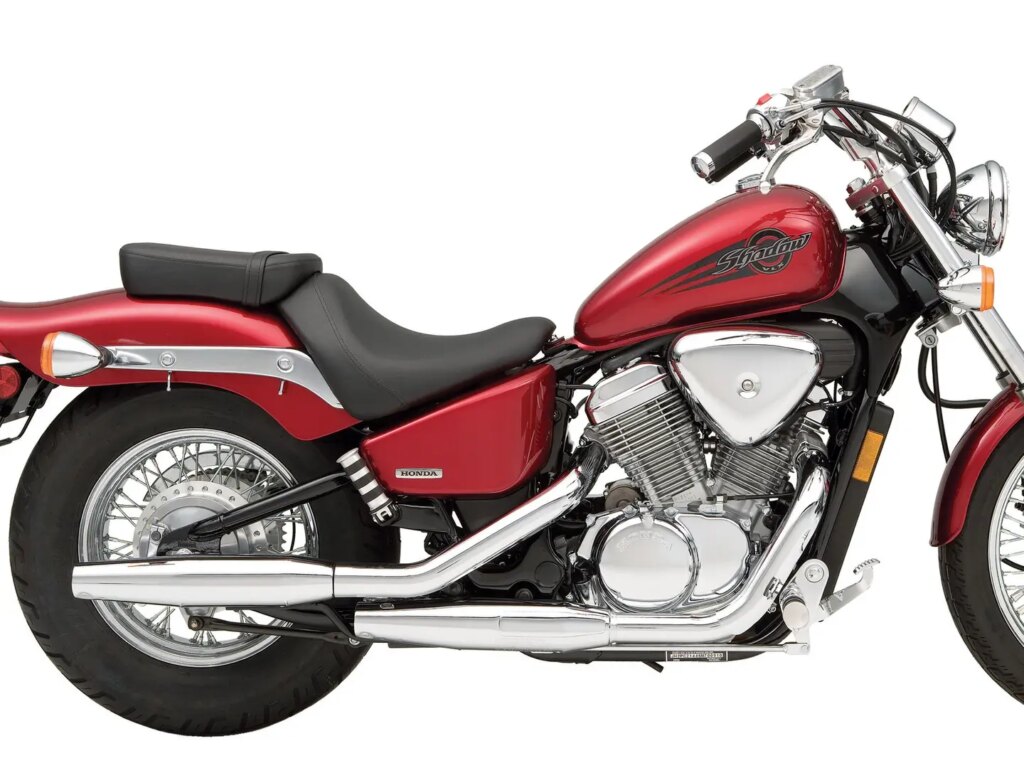

2007 Honda Shadow VLX Deluxe Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Honda Shadow VLX Deluxe.

Basic Specs

Year2007
MakeHonda
ModelHonda Shadow VLX Deluxe
CostUS$ 5799. Prices depend on country, taxes, accessories, etc.

Engine

Displacement583.00 ccm (35.57 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke75.0 x 66.0 mm (3.0 x 2.6 inches)
Valves/Cylinder3
FuelingCarburettor. Single 34mm diaphragm-type
IgnitionCD with electronic advance, two spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox4-speed
Final Drive
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.97 litres (2.90 gallons)
Emissions

Chassis

Frame Type
Rake35.0°
Trail161 mm (6.3 inches)
Front Suspension39mm fork
Front Travel145 mm (5.7 inches)
Rear SuspensionSingle-shock with seven-position spring-preload adjustability
Rear Travel89 mm (3.5 inches)
Seat
Seat Height650 mm (25.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,600 mm (63.0 inches)
Dry Weight207.7 kg (458.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/90-19
Rear Tire/Tyre170/80-15
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda Shadow VLX Deluxe. This Custom / cruiser model is powered by a V2, four-stroke engine with 583.00 ccm (35.57 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Carburettor. Single 34mm diaphragm-type allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda Shadow VLX Deluxe is moderated by Liquid. You'll need to get familiar with the 4-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 100/90-19 and the rear is 170/80-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda Shadow VLX Deluxe was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: VT600CD
