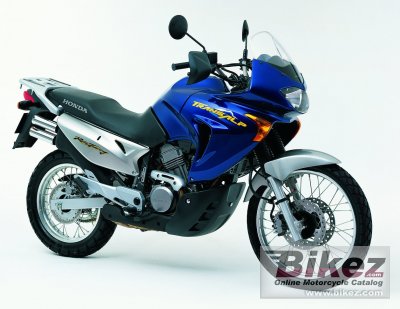

2007 Honda XL650V Transalp Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Honda XL650V Transalp.

Basic Specs

Year2007
MakeHonda
ModelHonda XL650V Transalp
Cost

Engine

Displacement647.00 ccm (39.48 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke79.0 x 66.0 mm (3.1 x 2.6 inches)
Valves/Cylinder3
FuelingCarburettor. 34mm slant-type CV type carburettor x 2
IgnitionDigital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower52.00 HP (38.0 kW)
Torque55.00 Nm (5.6 kgf-m or 40.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension41mm leading-axle fork, 220mm axle travel
Front Travel
Rear SuspensionPro-Link with adjustable compression damping, 172mm axle travel
Rear Travel
Seat
Seat Height843 mm (33.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,260 mm (89.0 inches)
Total Width
Ground Clearance192 mm (7.6 inches)
Wheelbase1,505 mm (59.3 inches)
Dry Weight191.0 kg (421.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesDouble disc
Front Brake Diameter256 mm (10.1 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda XL650V Transalp. This Sport touring model is powered by a V2, four-stroke engine with 647.00 ccm (39.48 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Carburettor. 34mm slant-type CV type carburettor x 2 allowing this machine to produce its 52.00 HP (38.0 kW) horsepower and 55.00 Nm (5.6 kgf-m or 40.6 ft.lbs) torque. According to our records engine heat of the Honda XL650V Transalp is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda XL650V Transalp was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
