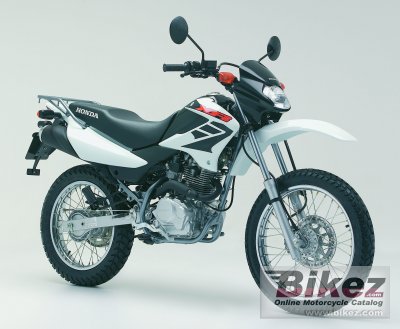

2007 Honda XR 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Honda XR 125.

Basic Specs

Year2007
MakeHonda
ModelHonda XR 125
Cost

Engine

Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke56.5 x 49.5 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionDigital transistorised with electronic advance
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower15.00 HP (10.9 kW)
Torque10.00 Nm (1.0 kgf-m or 7.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.00 litres (3.17 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension31mm telescopic fork, 180mm axle travel
Front Travel
Rear SuspensionMonoshock damper, 160mm axle travel
Rear Travel
Seat
Seat Height820 mm (32.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,060 mm (81.1 inches)
Total Width
Ground Clearance250 mm (9.8 inches)
Wheelbase
Dry Weight115.5 kg (254.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre
Rear Tire/Tyre
Front BrakesDouble disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda XR 125. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 124.00 ccm (7.57 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 15.00 HP (10.9 kW) horsepower and 10.00 Nm (1.0 kgf-m or 7.4 ft.lbs) torque. According to our records engine heat of the Honda XR 125 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is and the rear is . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Expanding brake (drum brake) rear brakes. The Honda XR 125 was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
