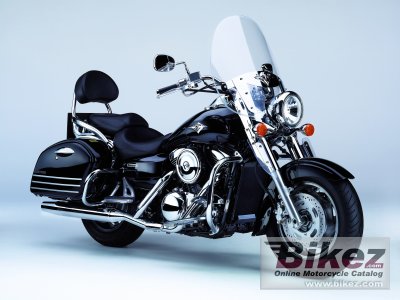

These are the known mechanical and performance specifications for your 2007 Kawasaki VN1600 Classic Tourer.
Basic Specs
Engine
Displacement1552.00 ccm (94.70 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke102.0 x 95.0 mm (4.0 x 3.7 inches)
Valves/Cylinder8
FuelingInjection. Fuel injection: ø 36 mm x 2
IgnitionDigital
Exhaust
Lubrication
Cooling
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity20.00 litres (5.28 gallons)
Emissions
Chassis
Frame TypeDouble-cradle, high-tensile steel
Rake32.0°
Trail184 mm (7.2 inches)
Front Suspension43 mm telescopic fork
Front Travel43 mm (1.7 inches)
Rear SuspensionSwingarm with twin air-assisted shocks, 4-way rebound damping.
Rear Travel
Seat
Seat Height705 mm (27.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,685 mm (66.3 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre150/80-16
Rear Tire/Tyre170/70-16
Front BrakesDouble disc. Dual 300 mm discs, Dual twin-piston caliper.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. Single 300 mm disc, Twin-piston caliper.
Rear Brake Diameter300 mm (11.8 inches)
Wheels
Comments
