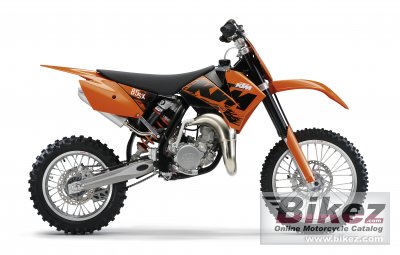

These are the known mechanical and performance specifications for your 2007 KTM 85 SX 17-14.
Basic Specs
Engine
Displacement84.90 ccm (5.18 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke47.0 x 49.0 mm (1.9 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK 28
IgnitionMoric digital 2M1
ExhaustAluminium
LubricationMixture lubrication 1:40
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet multi-disc clutch, operated hydraulically
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.00 litres (1.32 gallons)
Emissions
Chassis
Frame TypeChromium molybdenum
Rake24.0°
Trail
Front SuspensionWP USD, 43 mm
Front Travel115 mm (4.5 inches)
Rear SuspensionWP monoshock PDS
Rear Travel185 mm (7.3 inches)
Seat
Seat Height865 mm (34.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance385 mm (15.2 inches)
Wheelbase1,290 mm (50.8 inches)
Dry Weight66.0 kg (145.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/100-17
Rear Tire/Tyre90/100-14
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter200 mm (7.9 inches)
Wheels
