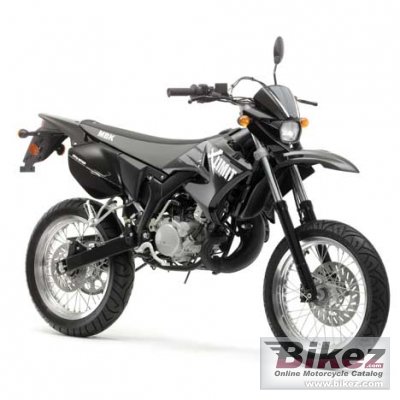

2007 MBK X-Limit SM Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 MBK X-Limit SM.

Basic Specs

Year2007
MakeMBK
ModelMBK X-Limit SM
Cost

Engine

Displacement50.00 ccm (3.05 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression12.0:1
Bore/Stroke40.3 x 39.0 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. Dell´Orto - PHBN 16
IgnitionSpark ignition
Exhaust
LubricationSeparate lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower2.81 HP (2.1 kW)
Torque3.30 Nm (0.3 kgf-m or 2.4 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.50 litres (1.72 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic
Front Travel190 mm (7.5 inches)
Rear SuspensionHydraulic shock absorber
Rear Travel220 mm (8.7 inches)
Seat
Seat Height870 mm (34.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,115 mm (43.9 inches)
Total Length2,000 mm (78.7 inches)
Total Width850 mm (33.5 inches)
Ground Clearance317 mm (12.5 inches)
Wheelbase1,350 mm (53.1 inches)
Dry Weight98.0 kg (216.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc. Disc, ø 260
Front Brake Diameter
Rear BrakesSingle disc. Disc, Ø 220
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the MBK X-Limit SM. This Super motard model is powered by a Single cylinder, two-stroke engine with 50.00 ccm (3.05 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Carburettor. Dell´Orto - PHBN 16 allowing this machine to produce its 2.81 HP (2.1 kW) horsepower and 3.30 Nm (0.3 kgf-m or 2.4 ft.lbs) torque. According to our records engine heat of the MBK X-Limit SM is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 100/80-17 and the rear is 130/70-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Disc, ø 260 front brakes and Single disc. Disc, Ø 220 rear brakes. The MBK X-Limit SM was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
