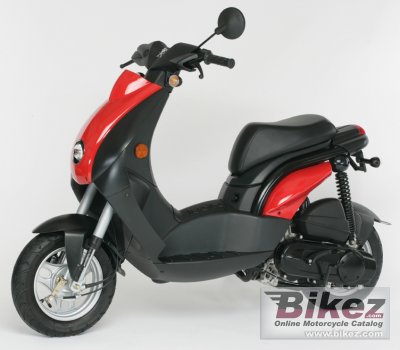

These are the known mechanical and performance specifications for your 2007 Peugeot Ludix One.
Basic Specs
Engine
Displacement50.00 ccm (3.05 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke39.9 x 39.8 mm (1.6 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor. GURTNER PY 12
IgnitionC.D.I
Exhaust
LubricationSeparate lubrication by electric pump Dell’Orto driven by a control unit. The oil is injected directly into the carburettor.
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.50 litres (1.45 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspensionreverse telescopic fork.
Front Travel73 mm (2.9 inches)
Rear Suspension1 central combined hydraulic spring-shock absorber.
Rear Travel65 mm (2.6 inches)
Seat
Seat Height760 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,060 mm (41.7 inches)
Total Length1,645 mm (64.8 inches)
Total Width665 mm (26.2 inches)
Ground Clearance
Wheelbase1,210 mm (47.6 inches)
Dry Weight66.0 kg (145.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-10
Rear Tire/Tyre90/90-10
Front BrakesExpanding brake (drum brake). 110mm dia
Front Brake Diameter
Rear BrakesExpanding brake (drum brake). 110mm dia
Rear Brake Diameter
Wheels
Comments
