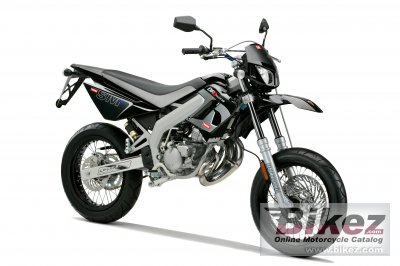

These are the known mechanical and performance specifications for your 2008 Derbi Senda DRD Racing 50 SM.
Basic Specs
Engine
Displacement49.90 ccm (3.04 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression11.0:1
Bore/Stroke39.9 x 40.0 mm (1.6 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionElectronic CDI
Exhaust
LubricationOil pump
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension40 mms. hydraulic fork. 195 mm travel
Front Travel
Rear SuspensionMonoshock with progressive link system. 182 mm travel
Rear Travel
Seat
Seat Height875 mm (34.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,165 mm (45.9 inches)
Total Length
Total Width805 mm (31.7 inches)
Ground Clearance
Wheelbase1,400 mm (55.1 inches)
Dry Weight97.0 kg (213.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
