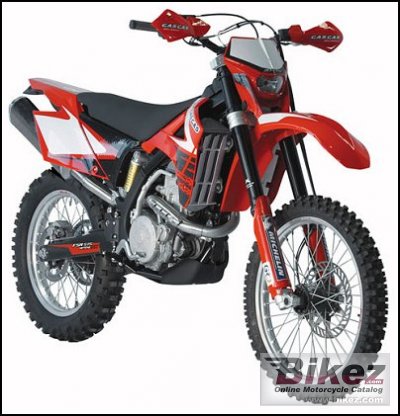

These are the known mechanical and performance specifications for your 2008 GAS GAS EC 515 FSR.
Basic Specs
Engine
Displacement515.00 ccm (31.43 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke100.0 x 63.0 mm (3.9 x 2.5 inches)
Valves/Cylinder4
FuelingInjection. Electronic injection (Battery less EFI) Kokusan
IgnitionIntegrated in the injection system.
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions
Chassis
Frame TypeDeltabox build with Cromoly D tubes.
Rake
Trail
Front Suspension45 mm upside-down fork Marzocchi, 290 mm travel.
Front Travel
Rear SuspensionOne-piece aluminium swing arm progressive system with
Rear Travel
Seat
Seat Height940 mm (37.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,465 mm (57.7 inches)
Dry Weight118.0 kg (260.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre140/80-18
Front BrakesSingle disc
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
