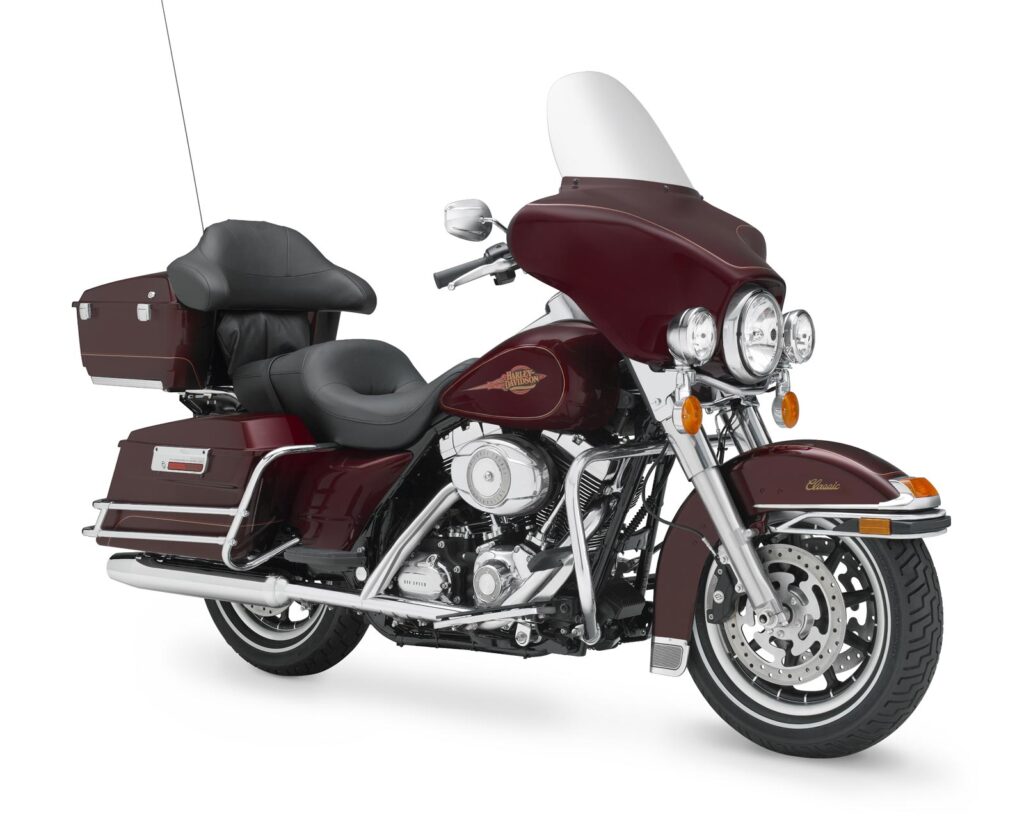

2008 Harley-Davidson FLHTC Electra Glide Classic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Harley-Davidson FLHTC Electra Glide Classic.

Basic Specs

Year2008
MakeHarley-Davidson
ModelHarley-Davidson FLHTC Electra Glide Classic
CostUS$ 18695. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1573.25 ccm (96.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.3 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection
Ignition
ExhaustChrome, cross-over exhaust with dual mufflers and taper End Caps
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline

Performance

Horespower
Torque125.56 Nm (12.8 kgf-m or 92.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.35 litres/100 km (23.0 km/l or 54.07 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions100.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake26.0°
Trail157 mm (6.2 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,477 mm (97.5 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight358.8 kg (791.0 pounds)
Wet Weight375.6 kg (828.0 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR19
Rear Tire/Tyre240/40-R18
Front BrakesSingle disc. Bremo 4-piston calipers
Front Brake Diameter
Rear BrakesSingle disc. Bremo 4-piston calipers
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FLHTC Electra Glide Classic. This Touring model is powered by a V2, four-stroke engine with 1573.25 ccm (96.00 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and 125.56 Nm (12.8 kgf-m or 92.6 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLHTC Electra Glide Classic is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR19 and the rear is 240/40-R18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Bremo 4-piston calipers front brakes and Single disc. Bremo 4-piston calipers rear brakes. The Harley-Davidson FLHTC Electra Glide Classic was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

40 Watt 4-speaker advanced audio system by Harman/Kardon®; batwing, fork-mounted fairing with full instrumentation; black powder-coated engine with chrome covers; hard saddlebags and King Tour Pak® with chrome accents and 2-position adjustability control ; air-adjustable rear suspension
