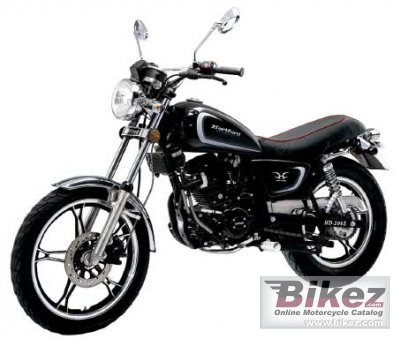

2008 Hartford HD 200 S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Hartford HD 200 S.

Basic Specs

Year2008
MakeHartford
ModelHartford HD 200 S
TypeSport
Cost

Engine

Displacement197.00 ccm (12.02 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke63.5 x 62.2 mm (2.5 x 2.4 inches)
Valves/Cylinder
Fueling
IgnitionCDI
Exhaust
Lubrication
Cooling

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower19.17 HP (14.0 kW)
Torque10.90 Nm (1.1 kgf-m or 8.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height750 mm (29.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,230 mm (48.4 inches)
Total Length1,940 mm (76.4 inches)
Total Width810 mm (31.9 inches)
Ground Clearance130 mm (5.1 inches)
Wheelbase1,320 mm (52.0 inches)
Dry Weight130.0 kg (286.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-18
Rear Tire/Tyre130/90-18
Front BrakesSingle disc
Front Brake Diameter200 mm (7.9 inches)
Rear BrakesSingle disc
Rear Brake Diameter200 mm (7.9 inches)
Wheels

Comments

It appears you're interested in specifications for the Hartford HD 200 S. This Sport model is powered by a Single cylinder, four-stroke engine with 197.00 ccm (12.02 cubic inches) of actual displacement before 9.0:1 compression. Fueling is metered via allowing this machine to produce its 19.17 HP (14.0 kW) horsepower and 10.90 Nm (1.1 kgf-m or 8.0 ft.lbs) torque. According to our records engine heat of the Hartford HD 200 S is moderated by . You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-18 and the rear is 130/90-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Hartford HD 200 S was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Chinese made bike.
