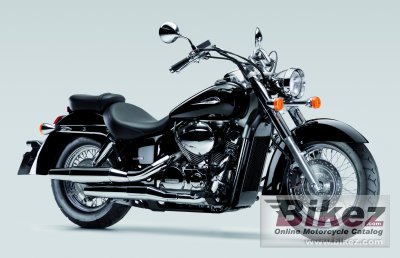

2008 Honda VT 750 C Shadow Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Honda VT 750 C Shadow.

Basic Specs

Year2008
MakeHonda
ModelHonda VT 750 C Shadow
Cost

Engine

Displacement745.00 ccm (45.46 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke79.0 x 76.0 mm (3.1 x 3.0 inches)
Valves/Cylinder
FuelingInjection. PGM-FI electronic fuel injection with automatic choke
IgnitionFully transistorised electronic
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower44.92 HP (32.8 kW)
Torque64.00 Nm (6.5 kgf-m or 47.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.60 litres (3.86 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension41mm telescopic fork, 116mm axle travel
Front Travel
Rear SuspensionDual conventional dampers with 5-step adjustable spring preload, 90mm axle travel
Rear Travel
Seat
Seat Height658 mm (25.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height2,510 mm (98.8 inches)
Total Length2,510 mm (98.8 inches)
Total Width
Ground Clearance131 mm (5.1 inches)
Wheelbase1,640 mm (64.6 inches)
Dry Weight256.3 kg (565.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/90-17
Rear Tire/Tyre160/80-15
Front BrakesSingle disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter180 mm (7.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda VT 750 C Shadow. This Custom / cruiser model is powered by a V2, four-stroke engine with 745.00 ccm (45.46 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Injection. PGM-FI electronic fuel injection with automatic choke  allowing this machine to produce its 44.92 HP (32.8 kW) horsepower and 64.00 Nm (6.5 kgf-m or 47.2 ft.lbs) torque. According to our records engine heat of the Honda VT 750 C Shadow is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/90-17 and the rear is 160/80-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda VT 750 C Shadow was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
