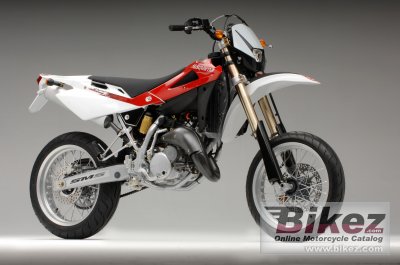

These are the known mechanical and performance specifications for your 2008 Husqvarna SM 125S.
Basic Specs
Engine
Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression8.8:1
Bore/Stroke54.0 x 54.5 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. DellÒrto PHBH 28mm
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet multiplate type, mechanic control
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions
Chassis
Frame TypeDouble tube cradle with steel round tubes, rear frame with steel square tubes
Rake
Trail
Front SuspensionUpside-down telescopic hydraulic adjustable fork (diam.40mm) Marzocci
Front Travel260 mm (10.2 inches)
Rear SuspensionProgressive ´soft damp´ with hydraulic single shock absorber
Rear Travel282 mm (11.1 inches)
Seat
Seat Height870 mm (34.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,210 mm (87.0 inches)
Total Width825 mm (32.5 inches)
Ground Clearance265 mm (10.4 inches)
Wheelbase1,470 mm (57.9 inches)
Dry Weight113.5 kg (250.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre110/70-17
Rear Tire/Tyre150/60-17
Front BrakesSingle disc. with 2-piston calipers
Front Brake Diameter260 mm (10.2 inches)
Rear BrakesSingle disc. with 2-piston calipers
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
