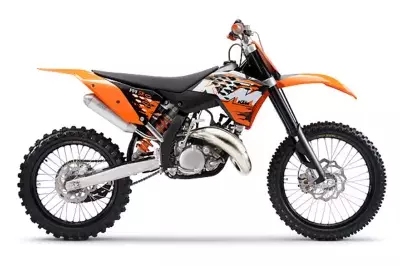

These are the known mechanical and performance specifications for your 2008 KTM 144 SX.
Basic Specs
Engine
Displacement143.60 ccm (8.76 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke56.0 x 58.5 mm (2.2 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK 39
IgnitionKokusan digital Magnet CDI
ExhaustAluminium
LubricationMixture oil lubrication 1:40
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet multi-disc clutch, operated hydraulically
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions
Chassis
Frame TypeCental double-cradle-type 25 CrMo4
Rake27.0°
Trail
Front SuspensionWP USD 48 mm
Front Travel300 mm (11.8 inches)
Rear SuspensionWP Monoshock PDS
Rear Travel335 mm (13.2 inches)
Seat
Seat Height925 mm (36.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance390 mm (15.4 inches)
Wheelbase1,471 mm (57.9 inches)
Dry Weight90.8 kg (200.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/100-21
Rear Tire/Tyre100/90-19
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
