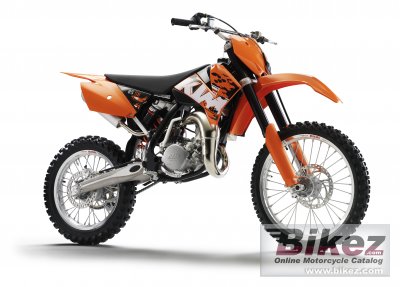

These are the known mechanical and performance specifications for your 2008 KTM 85 SX 19-16.
Basic Specs
Engine
Displacement84.90 ccm (5.18 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression12.5:1
Bore/Stroke47.0 x 49.0 mm (1.9 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. Keihin PWK 28
IgnitionMoric digital 2M1
Exhaust
LubricationMixture lubrication 1:40
CoolingLiquid
Drivetrain
Gearbox6-speed
Final Drive
ClutchWet multi-disc clutch, operated hydraulically
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.00 litres (1.32 gallons)
Emissions
Chassis
Frame TypeDouble grinded central double-cradle-type frame
Rake24.0°
Trail220 mm (8.7 inches)
Front SuspensionWP USD
Front Travel280 mm (11.0 inches)
Rear SuspensionWP monoshock PDS
Rear Travel300 mm (11.8 inches)
Seat
Seat Height875 mm (34.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance415 mm (16.3 inches)
Wheelbase1,290 mm (50.8 inches)
Dry Weight68.0 kg (149.9 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre70/100-19
Rear Tire/Tyre90/100-16
Front BrakesSingle disc
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter200 mm (7.9 inches)
Wheels
