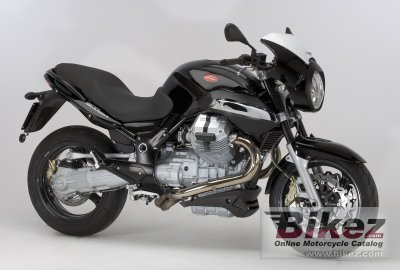

2008 Moto Guzzi 1200 Sport ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Moto Guzzi 1200 Sport ABS.

Basic Specs

Year2008
MakeMoto Guzzi
ModelMoto Guzzi 1200 Sport ABS
Cost

Engine

Displacement1151.00 ccm (70.23 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke95.0 x 81.2 mm (3.7 x 3.2 inches)
Valves/Cylinder
FuelingInjection. Weber-Marelli electronic fuel injection with stepper motor control
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchDouble disk, dry
Driveline

Performance

Horespower93.87 HP (68.5 kW)
Torque100.00 Nm (10.2 kgf-m or 73.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity23.00 litres (6.08 gallons)
Emissions

Chassis

Frame TypeTubular cradle, high tensile steel
Rake25.0°
Trail120 mm (4.7 inches)
Front SuspensionTelescopic hydraulic fork with 45 mm and TIN surface treatment, preload adjustable
Front Travel110 mm (4.3 inches)
Rear SuspensionSingle arm suspension with progressive linkage, rear shock absorber adjustable in rebound and pre-load (hydraulic)
Rear Travel110 mm (4.3 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,195 mm (86.4 inches)
Total Width840 mm (33.1 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase1,485 mm (58.5 inches)
Dry Weight230.0 kg (507.1 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter282 mm (11.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Moto Guzzi 1200 Sport ABS. This Naked bike model is powered by a V2, four-stroke engine with 1151.00 ccm (70.23 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Injection. Weber-Marelli electronic fuel injection with stepper motor control allowing this machine to produce its 93.87 HP (68.5 kW) horsepower and 100.00 Nm (10.2 kgf-m or 73.8 ft.lbs) torque. According to our records engine heat of the Moto Guzzi 1200 Sport ABS is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Tubular cradle, high tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS front brakes and Single disc. ABS rear brakes. The Moto Guzzi 1200 Sport ABS was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
