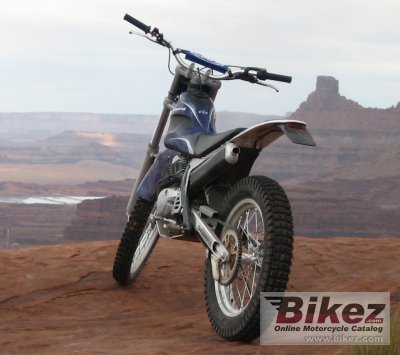

These are the known mechanical and performance specifications for your 2008 Scorpa TY-S 125F.
Basic Specs
Engine
Displacement123.00 ccm (7.51 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke54.0 x 54.0 mm (2.1 x 2.1 inches)
Valves/Cylinder
Fueling
IgnitionCDI
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity4.50 litres (1.19 gallons)
Emissions
Chassis
Frame TypePerimetric, 25CD4S Steel
Rake
Trail
Front SuspensionMARZOCCHI Steel 40 mm hydraulic fork, adjustable compression and rebond damping, 177 mm axle travel
Front Travel
Rear SuspensionSACHS adjustable hydraulic single damper, 165 mm wheel travel
Rear Travel
Seat
Seat Height795 mm (31.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,047 mm (80.6 inches)
Total Width
Ground Clearance295 mm (11.6 inches)
Wheelbase1,345 mm (53.0 inches)
Dry Weight
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter187 mm (7.4 inches)
Rear BrakesSingle disc
Rear Brake Diameter142 mm (5.6 inches)
Wheels
