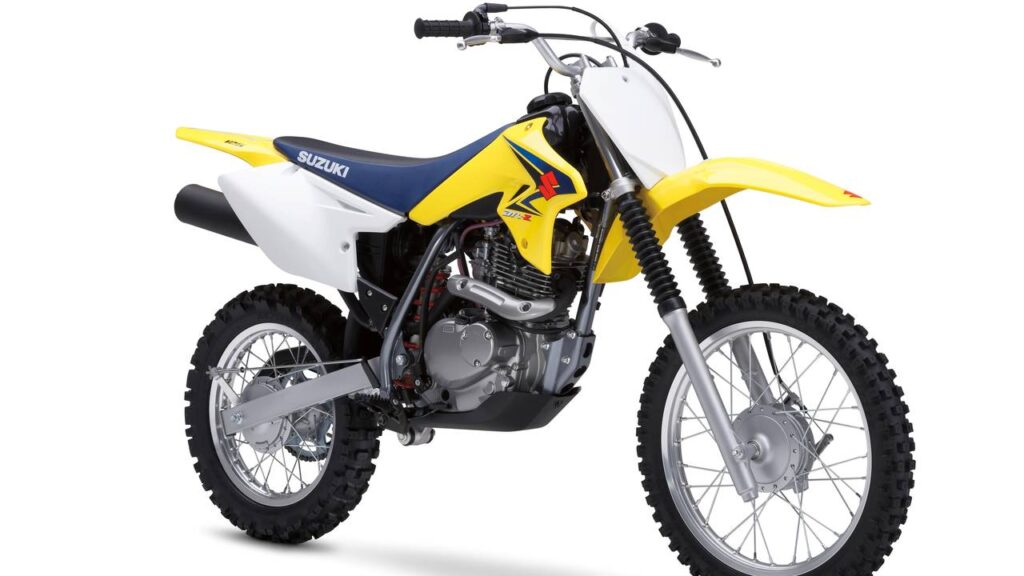

2008 Suzuki DR-Z125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Suzuki DR-Z125.

Basic Specs

Year2008
MakeSuzuki
ModelSuzuki DR-Z125
CostUS$ 2399. Prices depend on country, taxes, accessories, etc.

Engine

Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke57.0 x 48.8 mm (2.2 x 1.9 inches)
Valves/Cylinder
FuelingCarburettor. MikuniT VM20SS
IgnitionCDI
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity6.60 litres (1.74 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic, oil-damped
Front Travel
Rear SuspensionLink-type, oil-damped
Rear Travel
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,060 mm (41.7 inches)
Total Length1,835 mm (72.2 inches)
Total Width770 mm (30.3 inches)
Ground Clearance260 mm (10.2 inches)
Wheelbase1,245 mm (49.0 inches)
Dry Weight79.0 kg (174.2 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre70/70-17
Rear Tire/Tyre90/90-14
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki DR-Z125. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 124.00 ccm (7.57 cubic inches) of actual displacement before 9.5:1 compression. Fueling is metered via Carburettor. MikuniT VM20SS allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki DR-Z125 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 70/70-17 and the rear is 90/90-14 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Suzuki DR-Z125 was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
