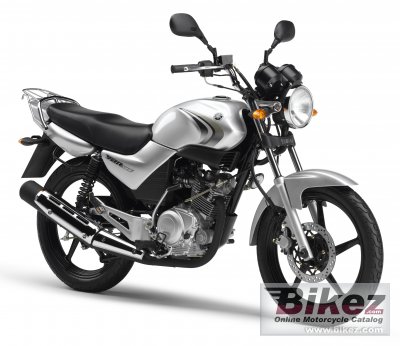

These are the known mechanical and performance specifications for your 2008 Yamaha YBR125.
Basic Specs
Engine
Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke54.0 x 54.0 mm (2.1 x 2.1 inches)
Valves/Cylinder
FuelingInjection
IgnitionTCI
Exhaust
LubricationWet sump
CoolingAir
Performance
Horespower10.05 HP (7.3 kW)
Torque9.60 Nm (1.0 kgf-m or 7.1 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.00 litres (3.43 gallons)
Emissions
Chassis
Frame TypeDiamond shaped
Rake
Trail
Front SuspensionTelescopic forks
Front Travel130 mm (5.1 inches)
Rear SuspensionSwingarm
Rear Travel120 mm (4.7 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,080 mm (42.5 inches)
Total Length1,980 mm (78.0 inches)
Total Width745 mm (29.3 inches)
Ground Clearance175 mm (6.9 inches)
Wheelbase1,290 mm (50.8 inches)
Dry Weight113.0 kg (249.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/80-M17
Rear Tire/Tyre90/90-M18
Front BrakesSingle disc
Front Brake Diameter245 mm (9.6 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels
