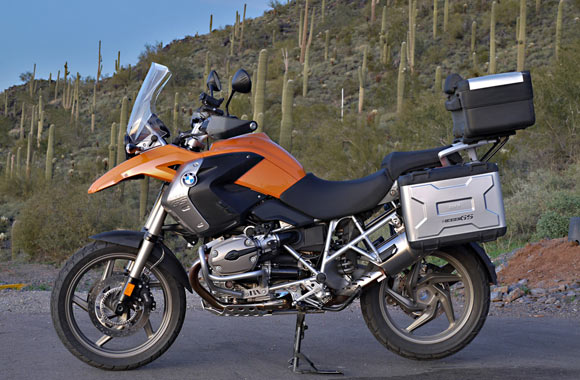

2009 BMW R 1200 GS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 BMW R 1200 GS.

Basic Specs

Year2009
MakeBMW
ModelBMW R 1200 GS
Cost

Engine

Displacement1170.00 ccm (71.39 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke101.0 x 73.0 mm (4.0 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin spark ignition
Ignition
ExhaustEuro 3
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSingle dry plate clutch, hydraulically operated
Driveline

Performance

Horespower103.25 HP (75.4 kW)
Torque115.00 Nm (11.7 kgf-m or 84.8 ft.lbs)
Top Speed200.0 km/h (124.3 mph)

Fuel Economy & Polution

Fuel Consumption4.30 litres/100 km (23.3 km/l or 54.70 mpg)
Fuel Capacity20.00 litres (5.28 gallons)
Emissions99.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTwo-section frame consisting of front and rear sections, load- bearing engine-gearbox unit
Rake25.7°
Trail101 mm (4.0 inches)
Front SuspensionBMW Motorrad Telelever
Front Travel190 mm (7.5 inches)
Rear SuspensionCast aluminium single-sided swing arm with BMW Motorrad Paralever
Rear Travel200 mm (7.9 inches)
Seat
Seat Height
Alt. Seat Height
Total Height1,450 mm (57.1 inches)
Total Length2,210 mm (87.0 inches)
Total Width23,749 mm (935.0 inches)
Ground Clearance
Wheelbase1,507 mm (59.3 inches)
Dry Weight203.0 kg (447.5 pounds)
Wet Weight229.0 kg (504.9 pounds)

Wheels & Brakes

Front Tire/Tyre110/80-19
Rear Tire/Tyre150/70-17
Front BrakesDouble disc. Optional ABS, can be switched off
Front Brake Diameter305 mm (12.0 inches)
Rear BrakesSingle disc. Optional ABS, can be switched off
Rear Brake Diameter265 mm (10.4 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW R 1200 GS. This Enduro / offroad model is powered by a Two cylinder boxer, four-stroke engine with 1170.00 ccm (71.39 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin spark ignition allowing this machine to produce its 103.25 HP (75.4 kW) horsepower and 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) torque. According to our records engine heat of the BMW R 1200 GS is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 110/80-19 and the rear is 150/70-17 . The entire package is supported by the frame, Two-section frame consisting of front and rear sections, load- bearing engine-gearbox unit. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Optional ABS, can be switched off front brakes and Single disc. Optional ABS, can be switched off rear brakes. The BMW R 1200 GS was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
