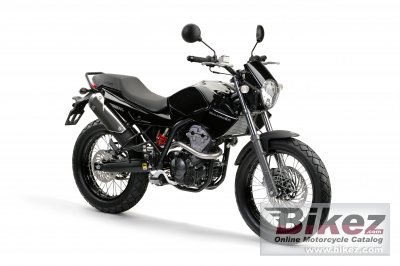

These are the known mechanical and performance specifications for your 2009 Derbi Mulhacén 125.
Basic Specs
Engine
Displacement124.20 ccm (7.58 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke58.0 x 47.0 mm (2.3 x 1.9 inches)
Valves/Cylinder4
Fueling
Ignition
Exhaust
LubricationDry sump
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity11.00 litres (2.91 gallons)
Emissions
Chassis
Frame TypeTubular High Tensile Steel
Rake
Trail
Front Suspension37 hydraulic fork. 130 mm travel
Front Travel
Rear SuspensionMono-shock 130 mm travel
Rear Travel
Seat
Seat Height750 mm (29.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,000 mm (39.4 inches)
Total Length
Total Width750 mm (29.5 inches)
Ground Clearance
Wheelbase1,326 mm (52.2 inches)
Dry Weight110.0 kg (242.5 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/90-18
Rear Tire/Tyre130/80-17
Front BrakesSingle disc
Front Brake Diameter280 mm (11.0 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
