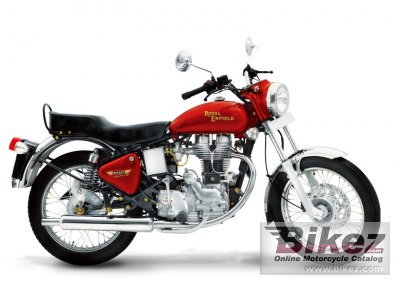

2009 Enfield Bullet Electra 5S Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Enfield Bullet Electra 5S.

Basic Specs

Year2009
MakeEnfield
ModelEnfield Bullet Electra 5S
Cost

Engine

Displacement346.00 ccm (21.11 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke70.0 x 90.0 mm (2.8 x 3.5 inches)
Valves/Cylinder
FuelingCarburettor. Micarb VM 24
IgnitionTransistor Coil Ignition (TCI)
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final Drive
Clutch
Driveline

Performance

Horespower18.00 HP (13.1 kW)
Torque32.00 Nm (3.3 kgf-m or 23.6 ft.lbs)
Top Speed100.0 km/h (62.1 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionTelescopic Hydraulic Damping
Front Travel130 mm (5.1 inches)
Rear SuspensionSwing Arm with adjustable and Gas filled Shock Absorbers
Rear Travel80 mm (3.1 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,080 mm (42.5 inches)
Total Length2,120 mm (83.5 inches)
Total Width750 mm (29.5 inches)
Ground Clearance140 mm (5.5 inches)
Wheelbase1,370 mm (53.9 inches)
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre3.25-19
Rear Tire/Tyre3.25-19
Front BrakesSingle disc
Front Brake Diameter280 mm (11.0 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Enfield Bullet Electra 5S. This Classic model is powered by a Single cylinder, four-stroke engine with 346.00 ccm (21.11 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Micarb VM 24 allowing this machine to produce its 18.00 HP (13.1 kW) horsepower and 32.00 Nm (3.3 kgf-m or 23.6 ft.lbs) torque. According to our records engine heat of the Enfield Bullet Electra 5S is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 3.25-19 and the rear is 3.25-19 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Enfield Bullet Electra 5S was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Royal Enfield bikes are made in India.
