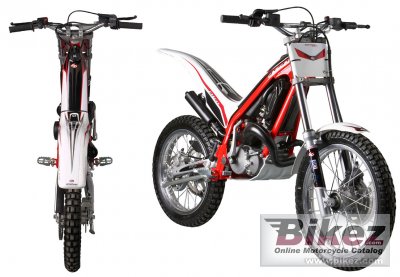

These are the known mechanical and performance specifications for your 2009 GAS GAS TXT 50 Boy.
Basic Specs
![](/motobrands/GAS GAS.png)
Engine
Displacement49.38 ccm (3.01 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression
Bore/Stroke40.0 x 39.3 mm (1.6 x 1.5 inches)
Valves/Cylinder
FuelingCarburettor. 14mm Dell´Orto
IgnitionVariable Electronic
Exhaust
Lubrication2% Mixture
CoolingLiquid
Drivetrain
Gearbox2-speed
Final DriveChain
ClutchDouble, hydraulic and automatic clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity3.00 litres (0.79 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension32mm Marzocchi fork
Front Travel140 mm (5.5 inches)
Rear SuspensionHydraulic Sachs shock
Rear Travel155 mm (6.1 inches)
Seat
Seat Height600 mm (23.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,005 mm (39.6 inches)
Dry Weight42.0 kg (92.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre2.50-16
Rear Tire/Tyre3.00-14
Front BrakesSingle disc. 2 opposed-piston caliper
Front Brake Diameter160 mm (6.3 inches)
Rear BrakesSingle disc. 2 opposed-piston caliper
Rear Brake Diameter150 mm (5.9 inches)
Wheels
