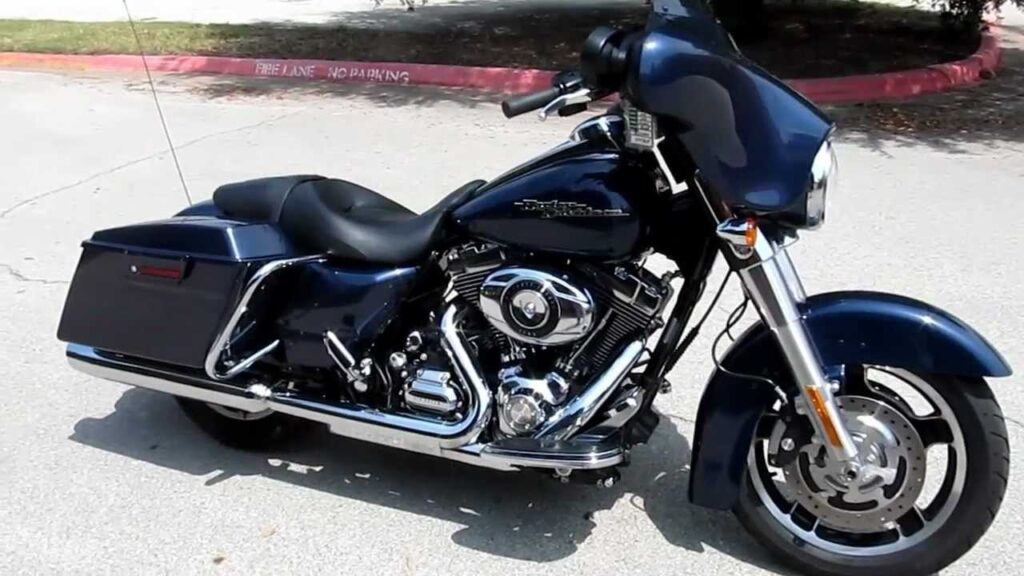

2009 Harley-Davidson FLHX Street Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Harley-Davidson FLHX Street Glide.

Basic Specs

Year2009
MakeHarley-Davidson
ModelHarley-Davidson FLHX Street Glide
Cost

Engine

Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustTwo-into-One-into-Two chrome exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower
Torque131.00 Nm (13.4 kgf-m or 96.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity22.70 litres (6.00 gallons)
Emissions

Chassis

Frame TypeNew mild steel, single spar rigid backbone with
Rake26.0°
Trail173 mm (6.8 inches)
Front Suspension41.3mm telescopic, cartridge-style damping
Front Travel117 mm (4.6 inches)
Rear SuspensionEnhanced handling
Rear Travel51 mm (2.0 inches)
Seat
Seat Height690 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,430 mm (95.7 inches)
Total Width
Ground Clearance119 mm (4.7 inches)
Wheelbase1,625 mm (64.0 inches)
Dry Weight355.0 kg (782.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. ABS
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter300 mm (11.8 inches)
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FLHX Street Glide. This Custom / cruiser model is powered by a V2, four-stroke engine with 1584.00 ccm (96.66 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 131.00 Nm (13.4 kgf-m or 96.6 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLHX Street Glide is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/80-B17 and the rear is 180/65-B16 . The entire package is supported by the frame, New mild steel, single spar rigid backbone with. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS front brakes and Single disc. ABS rear brakes. The Harley-Davidson FLHX Street Glide was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Black powder-coated engine with chrome treatment covers; “Batwing”, forkmountedfairing with integrated side mirrors; Chrome, low-profile fuel tank console; Clear-lens reflector-optics headlamp; Full-length height adjustable rider footboards; Passenger footpegs; New redesigned rider footboard supports for increased lean angle; Stainless steel, classic touring handlebars; One-piece, two-up Street Glide® classic seat; Lightly smoked, Electra Glide® low windshield; Injection-moulded GTX® saddlebags with locks; Harman-Kardon® Advanced Audio System; Cruise control;
