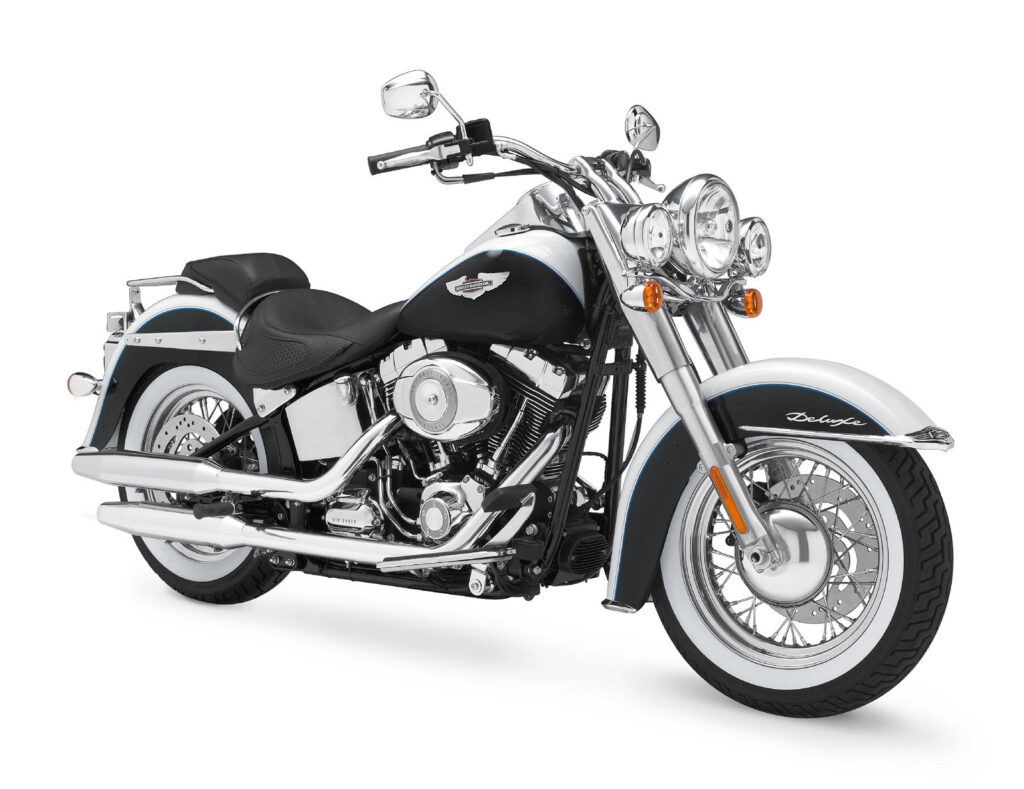

These are the known mechanical and performance specifications for your 2009 Harley-Davidson FLSTN Softail Deluxe.
Basic Specs
Engine
Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome Over/Under Shotgun exhaust
LubricationPressurized, dry sump
CoolingAir
Performance
Horespower
Torque120.68 Nm (12.3 kgf-m or 89.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.00 litres/100 km (20.0 km/l or 47.04 mpg)
Fuel Capacity18.90 litres (4.99 gallons)
Emissions116.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeMild steel tubular frame; rectangular section backbone;stamped, cast, and forged junctions; forged fender supports; MIG welded
Rake32.0°
Trail147 mm (5.8 inches)
Front Suspension41.3 mm telescopic, chrome dust covers
Front Travel
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel
Seat
Seat Height622 mm (24.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,405 mm (94.7 inches)
Total Width980 mm (38.6 inches)
Ground Clearance121 mm (4.8 inches)
Wheelbase1,638 mm (64.5 inches)
Dry Weight316.0 kg (696.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/TyreMT90-16
Rear Tire/TyreMU85-B16
Front BrakesSingle disc. 4-piston
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter292 mm (11.5 inches)
Wheels
