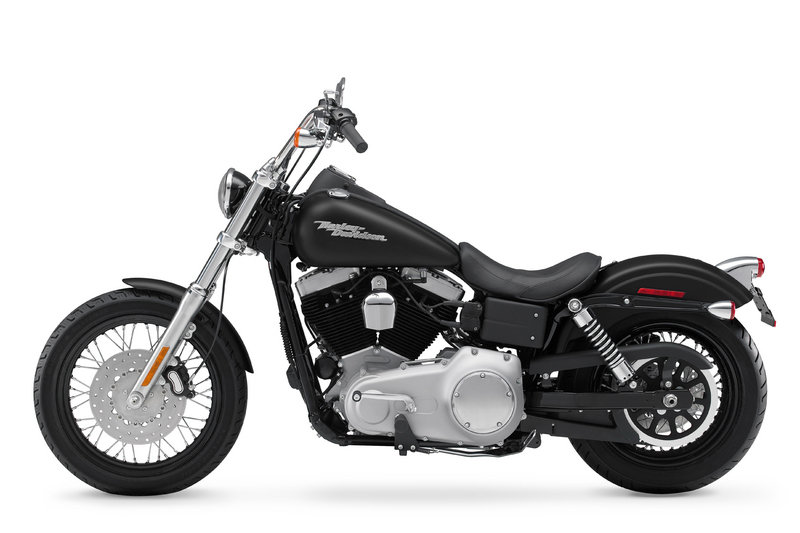

These are the known mechanical and performance specifications for your 2009 Harley-Davidson FXDB Dyna Street Bob.
Basic Specs
Engine
Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
Lubrication
CoolingAir
Performance
Horespower
Torque123.00 Nm (12.5 kgf-m or 90.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.50 litres/100 km (18.2 km/l or 42.77 mpg)
Fuel Capacity18.20 litres (4.81 gallons)
Emissions127.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeMild steel, tubular frame; rectangular section backbone; stamped,
Rake29.0°
Trail119 mm (4.7 inches)
Front Suspension49mm fork
Front Travel
Rear SuspensionCoil-over shock
Rear Travel
Seat
Seat Height655 mm (25.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,355 mm (92.7 inches)
Total Width
Ground Clearance142 mm (5.6 inches)
Wheelbase
Dry Weight290.0 kg (639.3 pounds)
Wet Weight205.0 kg (451.9 pounds)
Wheels & Brakes
Front Tire/Tyre100/90-19
Rear Tire/Tyre160/70-17
Front BrakesSingle disc. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter
Wheels
Comments
