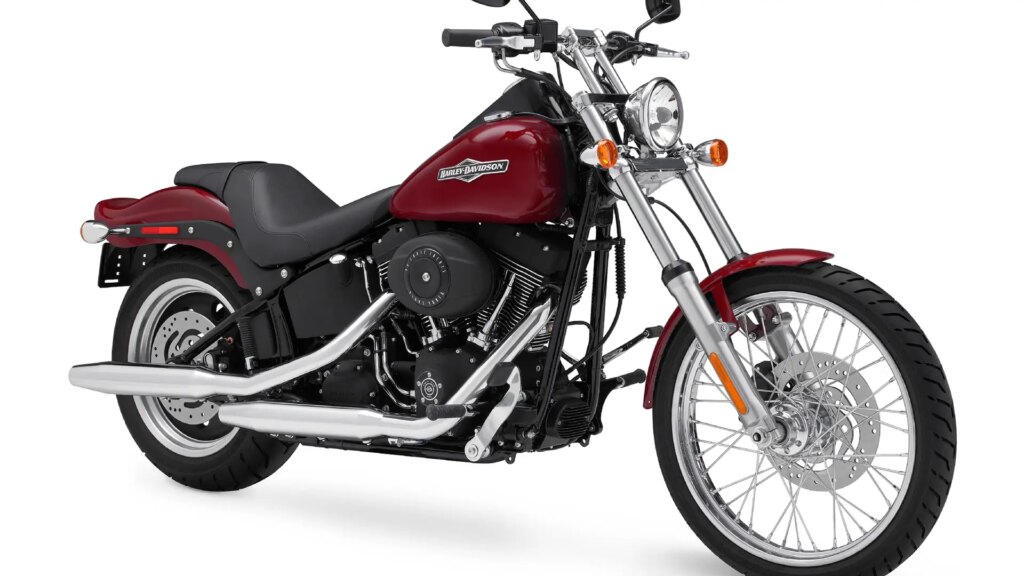

These are the known mechanical and performance specifications for your 2009 Harley-Davidson FXSTB Softail Night Train.
Basic Specs
Year2009
MakeHarley-Davidson
ModelHarley-Davidson FXSTB Softail Night Train
TypeCustom / cruiser
Cost
Engine
Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
Lubrication
CoolingAir
Performance
Horespower
Torque117.00 Nm (11.9 kgf-m or 86.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.90 litres (4.99 gallons)
Emissions
Chassis
Frame TypeMild steel tubular frame; rectangular section backbone;
Rake32.0°
Trail127 mm (5.0 inches)
Front Suspension41.3mm telescopic fork
Front Travel142 mm (5.6 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel109 mm (4.3 inches)
Seat
Seat Height640 mm (25.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,410 mm (94.9 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,700 mm (66.9 inches)
Dry Weight303.0 kg (668.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/TyreMT90-21
Rear Tire/Tyre200/55-R17
Front BrakesSingle disc
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter292 mm (11.5 inches)
Wheels
Comments
Black powder-coated engine with wrinkle-black treatment covers; Black“horseshoe” oil tank with chrome external oil lines; Black, nostalgic fuel tank console; Bullet headlamp; Chrome, isolated riser; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, drag-style handlebars; One-piece, two-up Badlander™ seat;“ape-hanger” handlebar; Gloss black console with cat-eye indicators; Rider adjusted, two-position, sprung solo seat; Tribal pinstripe graphics on fuel tank and fenders; Nostalgic patent badge on oil tank; Gloss black, oval air cleaner cover; Half moon floorboards with heel/toe shifter; New Willie G. signed skull graphics on the oil tankoil tank with chrome external oil lines; Chrome, bullet headlamp; Standard passenger footpegs; Chrome auxiliary lamps; New quick detachable king-size Lexan windshield; New 1940’s-style leather saddlebags with quick opening buckles; New passenger seat; New passenger backrest; New Touring handlebars with new top clamp and risers; Full FL front fender with new chrome accents; New two-tone leather tank panel; New Hydra Glide style, chrome nacelle with horizontal “knuckles”; New “old-school” shaped, stainless steel rider footboards and brake paddle
