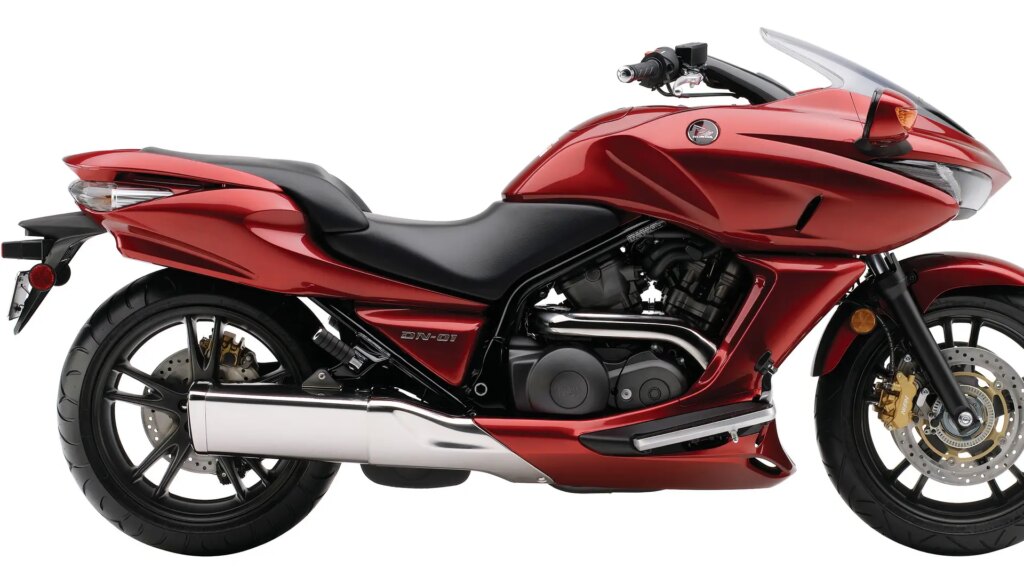

These are the known mechanical and performance specifications for your 2009 Honda DN-01.
Basic Specs
Year2009
MakeHonda
ModelHonda DN-01
TypeCustom / cruiser
CostUS$ 14999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement680.00 ccm (41.49 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke81.0 x 66.0 mm (3.2 x 2.6 inches)
Valves/Cylinder4
FuelingInjection. PGM-FI with automatic enrichment circuit, 40mm throttle bodies and 12-hole injectors
IgnitionDigital transistorized with electronic advance
Exhaust
Lubrication
CoolingLiquid
Drivetrain
GearboxAutomatic
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.14 litres (4.00 gallons)
Emissions
Chassis
Frame Type
Rake28.5°
Trail114 mm (4.5 inches)
Front Suspension41mm telescopic fork
Front Travel107 mm (4.2 inches)
Rear SuspensionPro Arm single-side swingarm with single shock, seven-position spring preload adjustability
Rear Travel119 mm (4.7 inches)
Seat
Seat Height691 mm (27.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,605 mm (63.2 inches)
Dry Weight
Wet Weight269.9 kg (595.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter276 mm (10.9 inches)
Wheels
Comments
HFT continuously variable, hydromechanical two-mode automatic with six-speed manual mode. Model ID: NSA700A.
