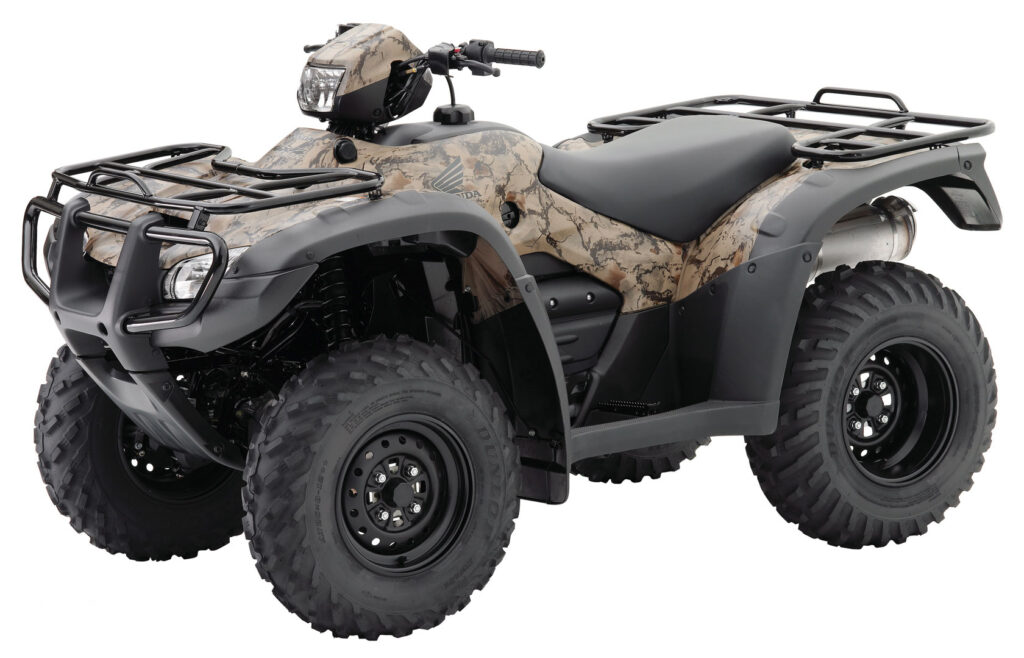

These are the known mechanical and performance specifications for your 2009 Honda FourTrax Foreman 4x4.
Basic Specs
Year2009
MakeHonda
ModelHonda FourTrax Foreman 4x4
TypeSport
CostUS$ 6599. Prices depend on country, taxes, accessories, etc.
Engine
Displacement475.00 ccm (28.98 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke92.0 x 71.5 mm (3.6 x 2.8 inches)
Valves/Cylinder
FuelingCarburettor. 36.0mm constant velocity carburetor
IgnitionCD with electronic advance
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchAutomatic
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.51 litres (4.10 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent double-wishbone
Front Travel170 mm (6.7 inches)
Rear SuspensionSwingarm with dual shocks
Rear Travel170 mm (6.7 inches)
Seat
Seat Height861 mm (33.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,181 mm (46.5 inches)
Total Length2,108 mm (83.0 inches)
Total Width1,189 mm (46.8 inches)
Ground Clearance191 mm (7.5 inches)
Wheelbase1,288 mm (50.7 inches)
Dry Weight
Wet Weight280.8 kg (619.0 pounds)
Wheels & Brakes
Front Tire/Tyre25/10-12
Rear Tire/Tyre25/10-12
Front BrakesDouble disc
Front Brake Diameter180 mm (7.1 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter180 mm (7.1 inches)
Wheels
Comments
Direct front and rear driveshafts with Traxlok and torque-sensitive front differential. Model ID: TRX500FM.
