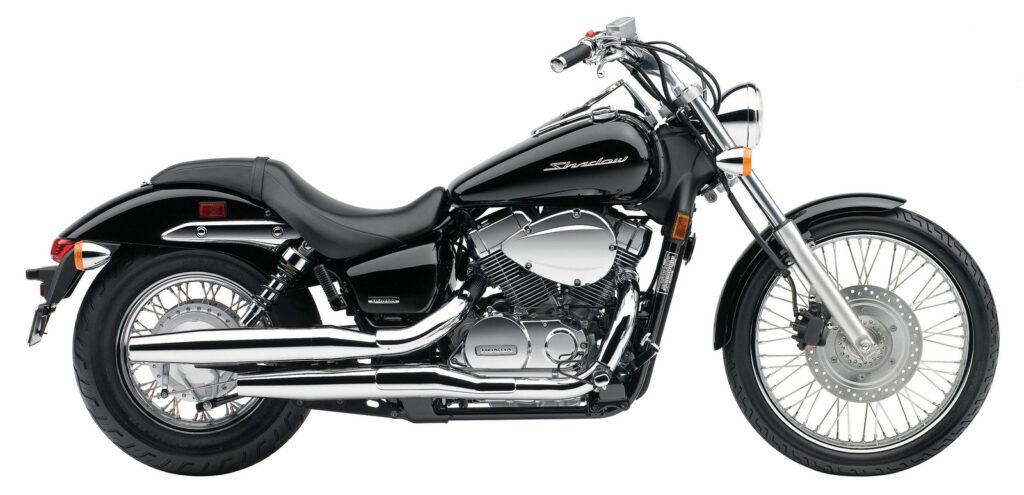

These are the known mechanical and performance specifications for your 2009 Honda Shadow Spirit 750.
Basic Specs
Year2009
MakeHonda
ModelHonda Shadow Spirit 750
TypeCustom / cruiser
CostUS$ 6999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement745.00 ccm (45.46 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke79.0 x 76.0 mm (3.1 x 3.0 inches)
Valves/Cylinder3
FuelingCarburettor. Single 34.0mm CV type
IgnitionCD with electronic advance, two spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity14.00 litres (3.70 gallons)
Emissions
Chassis
Frame Type
Rake34.0°
Trail158 mm (6.2 inches)
Front Suspension41.0mm fork
Front Travel117 mm (4.6 inches)
Rear SuspensionDual shocks with five-position spring-preload adjustability
Rear Travel89 mm (3.5 inches)
Seat
Seat Height653 mm (25.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,651 mm (65.0 inches)
Dry Weight
Wet Weight243.1 kg (536.0 pounds)
Wheels & Brakes
Front Tire/Tyre90/90-21
Rear Tire/Tyre160/80-15
Front BrakesDouble disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Model ID: VT750C2
