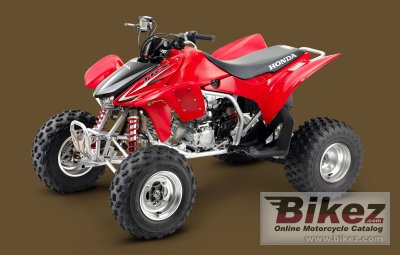

2009 Honda TRX450R Kick Start Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Honda TRX450R Kick Start.

Basic Specs

Year2009
MakeHonda
ModelHonda TRX450R Kick Start
TypeSport
CostUS$ 6999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement450.00 ccm (27.46 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke96.0 x 62.0 mm (3.8 x 2.4 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin 40.0mm flat slide with throttle position sensor (TPS)
IgnitionCD with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final Drive
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.21 litres (2.70 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionIndependent double-wishbone with Showa shocks, featuring adjustable spring preload, rebound and compression damping
Front Travel213 mm (8.4 inches)
Rear SuspensionPro-Link with single Showa shock featuring adjustable spring preload, rebound and compression damping
Rear Travel236 mm (9.3 inches)
Seat
Seat Height833 mm (32.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,100 mm (43.3 inches)
Total Length1,862 mm (73.3 inches)
Total Width1,176 mm (46.3 inches)
Ground Clearance112 mm (4.4 inches)
Wheelbase1,275 mm (50.2 inches)
Dry Weight
Wet Weight173.7 kg (383.0 pounds)

Wheels & Brakes

Front Tire/Tyre22/7-10
Rear Tire/Tyre20/10-10
Front BrakesDouble disc
Front Brake Diameter174 mm (6.9 inches)
Rear BrakesSingle disc
Rear Brake Diameter190 mm (7.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda TRX450R Kick Start. This Sport model is powered by a Single cylinder, four-stroke engine with 450.00 ccm (27.46 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Carburettor. Keihin 40.0mm flat slide with throttle position sensor (TPS) allowing this machine to produce its horsepower and torque. According to our records engine heat of the Honda TRX450R Kick Start is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 22/7-10 and the rear is 20/10-10 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda TRX450R Kick Start was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Model ID: TRX450R
