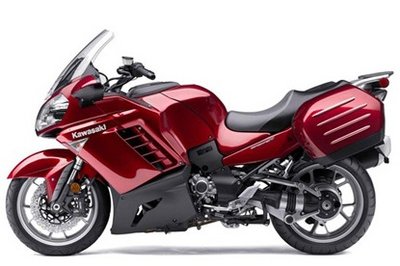

2009 Kawasaki Concours 14 ABS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Kawasaki Concours 14 ABS.

Basic Specs

Year2009
MakeKawasaki
ModelKawasaki Concours 14 ABS
CostUS$ 14299. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1352.00 ccm (82.50 cubic inches)
Type
DetailsIn-line four, four-stroke
Max RPM
Compression10.7:1
Bore/Stroke84.0 x 61.0 mm (3.3 x 2.4 inches)
Valves/Cylinder4
FuelingInjection
IgnitionTCBI with Digital Advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower
Torque136.00 Nm (13.9 kgf-m or 100.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity21.95 litres (5.80 gallons)
Emissions

Chassis

Frame Type
Rake26.1°
Trail112 mm (4.4 inches)
Front Suspension43mm inverted, telescopic fork with adjustable rebound damping and spring preload / 4.4 in.
Front Travel
Rear SuspensionTetra-Lever with stepless rebound damping adjustment and remote spring preload adjuster / 5.4 in.
Rear Travel
Seat
Seat Height815 mm (32.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,271 mm (89.4 inches)
Total Width
Ground Clearance
Wheelbase1,519 mm (59.8 inches)
Dry Weight306.2 kg (675.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre190/50-ZR17
Front BrakesDouble disc. ABS
Front Brake Diameter310 mm (12.2 inches)
Rear BrakesSingle disc. ABS
Rear Brake Diameter270 mm (10.6 inches)
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Concours 14 ABS. This Sport touring model is powered by a In-line four, four-stroke engine with 1352.00 ccm (82.50 cubic inches) of actual displacement before 10.7:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and 136.00 Nm (13.9 kgf-m or 100.3 ft.lbs) torque. According to our records engine heat of the Kawasaki Concours 14 ABS is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 190/50-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. ABS front brakes and Single disc. ABS rear brakes. The Kawasaki Concours 14 ABS was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
