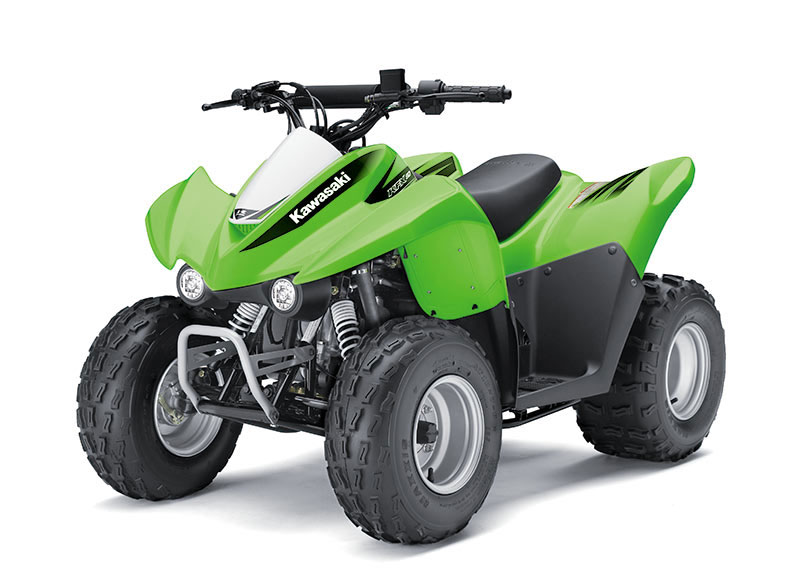

These are the known mechanical and performance specifications for your 2009 Kawasaki KFX 90.
Basic Specs
Year2009
MakeKawasaki
ModelKawasaki KFX 90
TypeATV
CostUS$ 3299. Prices depend on country, taxes, accessories, etc.
Engine
Displacement89.00 ccm (5.43 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke47.0 x 51.8 mm (1.9 x 2.0 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni PTE 16
IgnitionSolid state CDI
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity5.67 litres (1.50 gallons)
Emissions
Chassis
Frame TypeDouble cradle, steel
Rake
Trail
Front SuspensionDual A-arms, coil-over shocks / 8.5 in
Front Travel
Rear SuspensionSwingarm with piggy-back reservoir shock, dual-rate spring / 10.0 in
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length1,425 mm (56.1 inches)
Total Width904 mm (35.6 inches)
Ground Clearance1,000 mm (39.4 inches)
Wheelbase965 mm (38.0 inches)
Dry Weight394.7 kg (870.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre18/7-10 (AT)
Rear Tire/Tyre18/9-9 (AT)
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Comments
2WD. Continuously Variable Automatic transmission.
